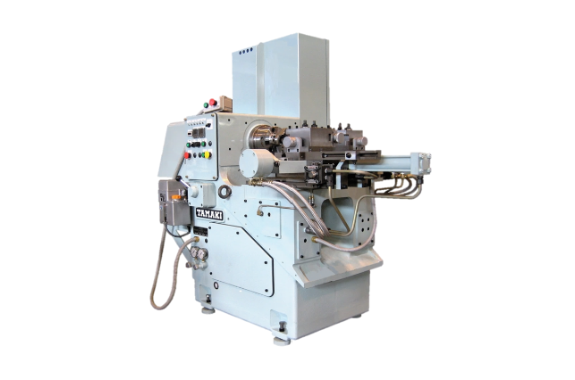

TMK Tamaki Iron Works Single Function TS-200 / TS-250
Manufacturer: Tamaki Iron Works Co., Ltd.
Model: TS-200 / TS-250
Feature
- A proven model with driving force that can withstand heavy cutting
Specifications
| TS-200 | TS-250 | |
| Standard chuck size | 8 inches | 12 inches |
| Bed maximum swing | ø450mm | ø500mm |
| Maximum machining diameter | ø200mm | ø250mm |
| Main shaft bearing inner diameter | ø90mm | ø120mm |
| Rotation speed (MAX) | 1700rpm | 1200 rpm |
| Slide 1 | Standard motion 150 stroke | 200 stroke |
| Slide 2 | Standard motion 120 strokes | 150 stroke |
| Main shaft motor | 3.7kw x 4P | 5.5kw x 4P |
| Hydraulic motor | 1.5kw x 4P | 1.5kw x 4P |
| Hydraulic pump | Variable discharge double pump | Variable discharge double pump |
| Main shaft brake | disc brake | disc brake |
| Approximate machine dimensions (depth × width × height) | 1700mm × 1300mm × 1100mm | 1900mm × 1500mm × 1400mm |
| Machine weight | 1400kg | 2000kg |
