Tobu Jukogyo Co., Ltd

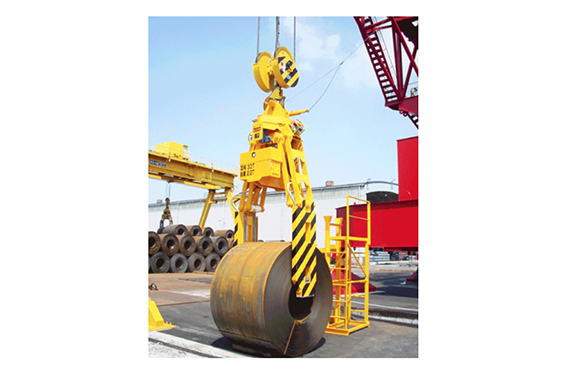

Tobu Jukogyo Link Type Coil Lifter
Manufacturer: Tobu Jukogyo Co., Ltd
Made in Japan
Product type: Link Type
Used at : Ports, warehouses
- The coil lifter easily attaches to any type of crane. Its hydraulic system minimizes shock during operation, ensuring fast and smooth performance. Operators experience reduced work-related stress thanks to its speed and stability. The design withstands rough usage, requires minimal maintenance, and rarely encounters mechanical issues.
- The lifter’s arm includes a reflective sensor that detects coil holes accurately. A limit bar installed on the arm prevents over-clamping, safeguarding the coil.
- For added safety, the lifter features mechanisms that keep the arm securely closed when the claws extend and ensure precise claw detection. You can customize the coil lifter based on specific needs, including coil handling types, operation methods, and power supply options.
Specifications of Link Type
| Type | Power | Features | Operation | Suitable Cranes |
|---|---|---|---|---|
| Vertical Type (Link Type) | Electric Hydraulic Type | Ideal for narrow coil stacking spaces inside ships | Wireless / Wired | Hook-type cranes, ship-loading cranes |
Feature of Link Type
Quay Wall / Shipboard Work Type
- Best suited for narrow coil stacking spaces inside ships.
- The arm opens and closes through the extension and contraction of hydraulic cylinders, ensuring a robust body structure.
Other Structures
Swivel Mechanism
This system swivels using a hydraulic motor, providing fast speed and smooth start-stop operation. It minimizes shocks and prevents load swaying.
Claw Raising/Lowering Mechanism
The claws used to lift the coil are usually stored within the thickness of the arm and extend only when gripping the coil.
This design allows the arm to be inserted between closely spaced coils, maximizing the efficient use of warehouse space.
