Acticite F
Can treat fluoride ions to levels below the water quality standard (0.8 mg/L).
Can be used as an alternative to bone charcoal, which was frequently used for fluoride ion removal.
Has passed leaching tests for water supply equipment and materials.

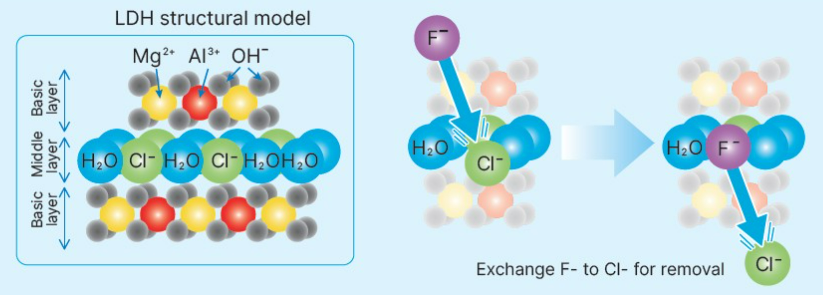

Mechanism of Fluoride Ion Removal
Flouride Ion in the ground water is getting removed by exchanging it with Chloride ion contained in the middle layer of the Layered Double Hydroxide (LDH).
Acticite F has the ion selectivity. Hydrogen carbonate ion, which is more abundant in groundwater, has high selectivity compared to fluorine ion, and decreases Acticite F’s life notably. Therefore, hydrogen carbonate ion is necessary to be removed before removal of fluorine ion.
* For more information on fluorine ion removal, please contact our sales staff.
Product Specifications
| Operating Environment | Place _of installation | Indoor _or outdoor |
|---|---|---|
| Temperature | 0～40℃ | |
| Raw Water | Water temperature | 0～40℃（No freezing） |
| Water quality | Fluorine ion: 0.8~20m/L | |
| General Conditions _of Use | Filter material type | Acticite F |
| Filteration velocity | Not more than SV10h-1 | |
| Max. operating press. | 0.3MPa | |
| Treated Water | Water quality | Fluorine ion: not more than 0.8m/L |
| Backwash Water | Backwash velocity | LV20m/h |
