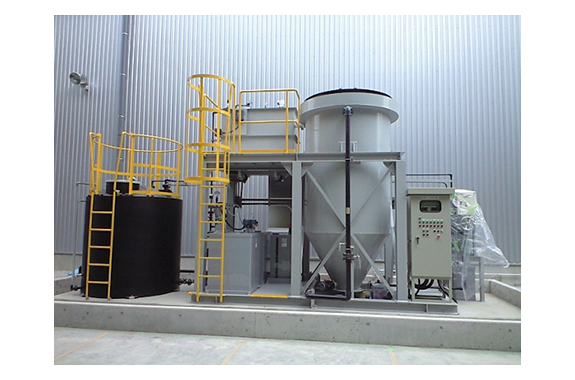

Tohkemy Coagulation And Sedimentation Unit Water Treatment Systems
Manufacturer: Tohkemy Corporation
Model: Coagulation And Sedimentation Unit
Applications
Treatment of wastewater containing heavy metals
Pretreatment of filtration equipment (when raw water has high concentration)
Solid-liquid separation of biologically treated water, etc.
Unit Specifications
Model：Cylindrical tubular coagulation sedimentation treatment method
| Amount of treated water (m3/h) | not more than 1.5 | not more than 2.5 | not more than 4.0 | not more than 6.0 |
|---|---|---|---|---|
| Approximate Equipment Dimensions L×W×H (m) | 4×2.1×3.4 | 4.4×2.3×3.7 | 4.6×3.0×4.1 | 5.3×3.3×4.4 |
| Power-supply | 3P 200V × Approx.1.5kW | 3P 200V × Approx.1.5kW | 3P 200V × Approx.2.2kW | 3P 200V × Approx.2.5kW |
| Approximate Operating Mass (t) | 6.1 | 8.7 | 15.0 | 22.1 |
| Mud Collection Method | Gravity mud collection method | |||
| Required Material Quality | Reaction tank Coagulation tank Settling tank Stand SS400 | |||
| Painting | Inner surface：Non-tar epoxy resin coating after 2 types of cleaning Outer surface: After 2 types of cleaning, rust preventive coating, polyurethane resin paint topcoat | |||
* Surface loading means the amount of water(m3/m2・h) per 1 square meters.
*Design cuboid tank is possible for your request.
*With our experiences, we design the surface loading as 0.5~1.0 m3/m2・h.
*Please contact us before selecting as the amount of treatment may vary depending on the water quality.
Flow Sheet
