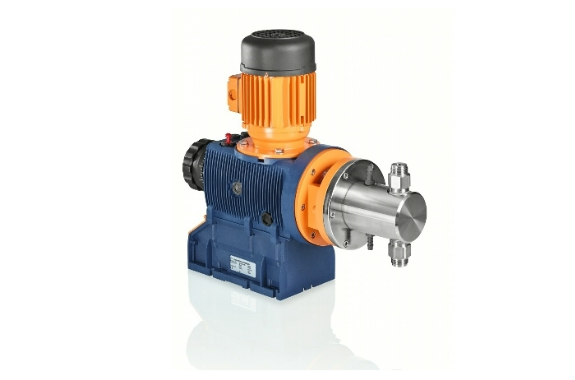

Motor-driven plunger-type metering pump suitable for injecting minute chemicals into high-pressure lines (maximum 32.0 MPa)
A lineup of two types, a control type that supports various control functions and a basic type that has a single function.

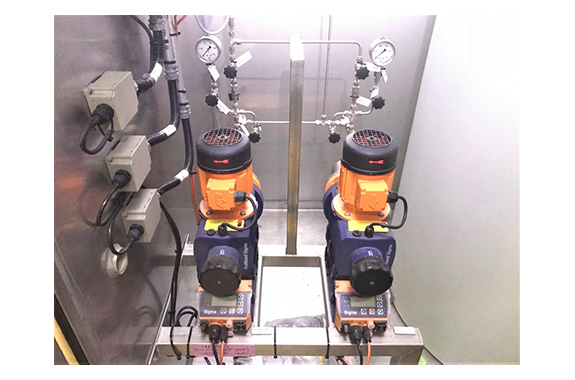

Boiler chemical injection (separate cans, additives, etc.)
High-pressure microchemical injection into chemical processes

Wetted Parts & Precision Control
Durable Materials: SUS316L stainless steel heads and ceramic plungers ensure superior chemical resistance.
Integrated Flushing: Built-in path prevents seal damage from chemical crystallization.
High Accuracy: Manual stroke adjustment in 0.2% increments achieves $\pm1\%$ F.S. accuracy (10%–100% stroke range).
External Interlocking Operation (Control Type)
Pulse Mode: Standard (1:1), division (1:N), and multiplication (N:1) modes (N = 0.01–99.9) for proportional injection with pulse flow meters.
Analog Mode: Proportional stroke speed control via 0/4–20mA DC signals.
Batch Mode: Delivers precise pre-set dosages via manual buttons or external signals.
Remote On/Off: Remote start/stop via contact inputs.
Additional Features & Specifications
Optional Output Relay: Alarm and stroke-paging signal outputs.
Power Supply: 100–230VAC $\pm10\%$ (50/60Hz) for Control Type; motor-dependent for Basic Type.
Protection & Environment: IP55 enclosure (non-explosion-proof; protect from direct weather/sunlight).
Model specifications

• Series			Model			Material model			Maximum discharge pressure				50Hz												60Hz												Inhalation Lift		Connection diameter
  													Maximum discharge rate [L/H]				Maximum discharge rate [mｌ/min]				Number of strokes [spm]				Maximum discharge rate [L/H]				Maximum discharge rate [mｌ/min]				Number of strokes [spm]						Rp female screw
  									[MPa]																												[m]
  SBKa			32002			SST			32.0				1.90				31.7				71				2.30				38.3				84				5		1/4
  			23004						23.0				4.00				66.7				129				4.80				80.0				154				5
  			10006						10.0				6.40				106.7				195				7.60				126.7				233				5
  			14006						14.0				6.10				101.7				71				7.10				118.3				84				4
  			10011						10.0				11.00				183.3				129				13.10				218.3				153				4
  			05016						5.0				16.70				278.3				195				20.00				333.3				233				4
  			07012						7.0				12.40				206.7				71				14.80				246.7				85				4
  			04522						4.5				22.50				375.0				129				26.70				445.0				153				4
  			02534						2.5				34.10				568.3				195				40.80				680.0				233				4
  			04022						4.0				22.40				373.3				71				26.50				441.7				84				4		3/8
  			02541						2.5				41.50				691.7				129				49.20				820.0				153				4
  			01264						1.2				64.00				1066.7				195				76.00				1266.7				233				4

• Series			Model			Material model			Maximum discharge pressure				50Hz/60Hz Common												Inhalation Lift		Connection diameter
  													Maximum discharge rate [L/H]				Maximum discharge rate [mｌ/min]				Number of strokes [spm]						Rp female screw
  									[MPa]																[m]
  SCKa			32002			SST			32.0				2.30				38.3				84				5		1/4
  			23004						23.0				4.80				80.0				154				5
  			10006						10.0				7.60				126.7				233				5
  			14006						14.0				7.10				118.3				84				4
  			10011						10.0				13.10				218.3				153				4
  			05016						5.0				20.00				333.3				233				4
  			07012						7.0				14.80				246.7				85				4
  			04522						4.5				26.70				445.0				153				4
  			02534						2.5				40.80				680.0				233				4
  			04022						4.0				26.50				441.7				84				4		3/8
  			02541						2.5				49.20				820.0				153				4
  			01264						1.2				65.40				1090.0				200				4

  Wetting part specifications

• Name	Pump head	Connector	Sticker	Plunger	Check ball
  SST	SUS316L	SUS316L	PTFE + 25% carbon	Ceramic	SUS316L
