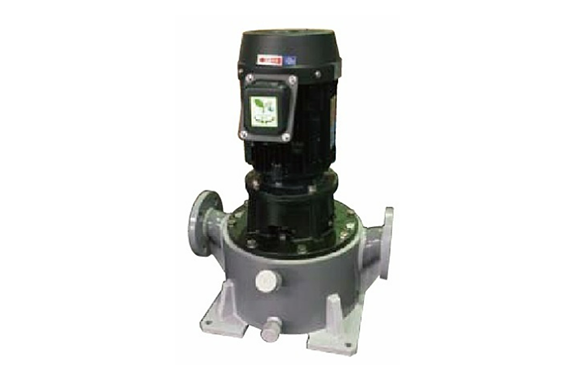

Tohkemy MOK-S-P Chemical Pump

Manufacturer: Tohkemy Corporation
Model: MOK-S-P

Features

Resin material for liquid-end parts, high resistance to chemicals.
This pump can keep water for self-priming in the pump casing. It is no need to pour water for operation without initial operation.
The sealing part is noncontact state and free from deterioration, wearing and heat generation. In addition, it is not affected by slurry and liquid to be used.
The sealing impeller forms fluid seal to protect liquid leakage during operation. The CSS prevents liquid leakage under suspension.

Model and specifications

50Hz

Model	Connection Diameter (mm)	Head (m)	Discharge Rate (L/min)	Motor Output (kW)	Weight (kg)
MOK-251S-P	25A×25A	5	80	0.75	35
MOK-401S-P	40A×40A	6	145	0.75	41
MOK-502S-P	50A×50A	7	230	1.5	47
MOK-653S-P	65A×65A	10	320	2.2	61
MOK-805S-P	80A×80A	12	420	3.7	86
MOK-1007S-P	100A×100A	16	520	5.5	135

60Hz

Model	Connection Diameter (mm)	Head (m)	Discharge Rate (L/min)	Motor Output (kW)	Weight (kg)
MOK-251S-P	25A×25A	7	85	0.75	35
MOK-402S-P	40A×40A	7	200	1.5	47
MOK-503S-P	50A×50A	10	240	2.2	49
MOK-655S-P	65A×65A	12	400	3.7	86
MOK-807S-P	80A×80A	14	500	5.5	103
MOK-10010S-P	100A×100A	18	620	7.5	140

50Hz, 60Hz

Model	Connection Diameter (mm)	Head (m)	Discharge Rate (L/min)	Motor Output (kW)	Weight (kg)
MOK-403S-PH	40A×40A	16	140	2.2	49
MOK-505S-PH	50A×50A	20	170	3.7	82
MOK-507S-PH	50A×50A	21	310	5.5	100
MOK-6510S-PH	65A×65A	26	320	7.5	117

Performance curve

Model Code Explanation

1: Connection diameter

25	25A
40	40A
50	50A
65	65A
80	80A
100	100A

2: Motor output

1	0.75kW
2	1.5kW
3	2.2kW
5	3.7kW
7	5.5kW
10	7.5kW

3: Type

S	Self-priming

4: Liquid-end material

PVC

5: Additional code

NIL	Standard
H	High-head

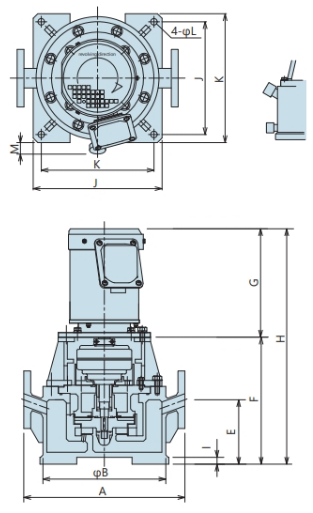

Dimensions

Model	A	B	φC	E	F	G	H	I	J	K	φL	M
MOK-251S-P	350	267	163	140	267	233	500	15	280	245	14	60
MOK-252S-P	350	267	187	140	267	275	542	15	280	245	14	60
MOK-401S-P	440	318	163	170	297	233	530	15	340	305	14	60
MOK-402S-P	440	318	187	170	297	275	572	15	340	305	14	60
MOK-502,503S-P	440	318	187	170	297	275	572	15	340	305	14	60
MOK-653S-P	560	420	187	220	357	275	632	20	400	360	14	80
MOK-655S-P			202		364	326	690
MOK-657S-P			243		344	370	714
MOK-805S-P	560	420	202	220	364	326	690	20	400	360	14	80
MOK-807S-P	560	420	243	220	344	370	714	20	400	360	14	80
MOK-1007S-P	660	470	243	330	465	370	835	30	485	440	15	100
MOK-10010S-P	660	470	243	330	465	370	835	30	485	440	15	100
MOK-403S-PH	440	318	187	170	297	275	572	15	340	305	14	60
MOK-505S-PH	490	370	202	220	364	326	690	20	365	325	14	80
MOK-507S-PH	490	370	243	220	344	370	714	20	365	325	14	80
MOK-6510S-PH	560	420	243	220	354	370	724	25	400	360	14	100

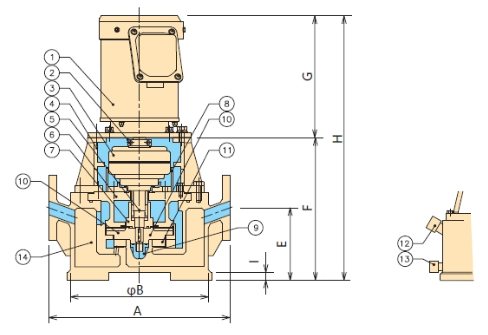

Liquid-end parts specifications

Part Name Combination		MOK-S-P
1	Motor	−
2	Separation Collar	S45C
3	CSS	−
4	Motor Stand	FC200
5	Pump Shaft	SUS304
6	Back Casing	HT-PVC
7	Shaft Sleeve	GFR-PP
8	Sealing Cover	PMMA
9	Impeller Nut	GFR-PP
10	Impeller	HT-PVC
11	Scroll Chamber	PVC
12	Pouring Cap	PVC
13	Drain Cap	PVC
14	Casing	PVC
