| Operating Environment | Place of installation | Indoor or outdoor |
|---|---|---|
| Temperature | 0～40°C | |
| Raw Water | Water temperature | 0～40°C (No freezing) |
| Water quality | Turbidity: up to 10 degree SS: up to 10mg/L | |
| General Conditions of Use | Filter material type | Single-layer: filtration sand or ceramics Multi-layer: anthracite+filtration sand or ceramics(+garnet) |
| Filtration velocity | Standard: LV10～20m/h (min.5m/h ; max.40m/h) | |
| Max. operating press. | 0.3 MPa | |
| Treated Water | Water quality | Turbidity: not more than 2 degree SS: not more than 5mg/L |
| Backwash Water | Backwash velocity | LV20～40m/h |
Tohkemy Corporation

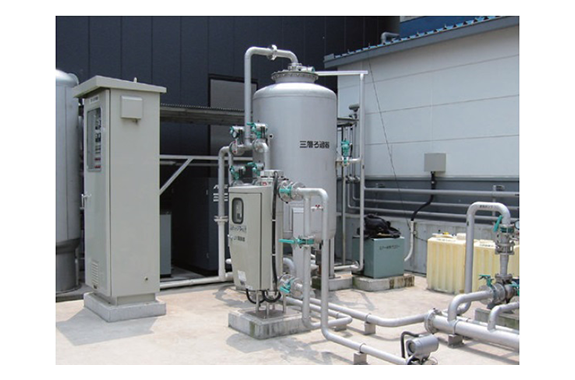

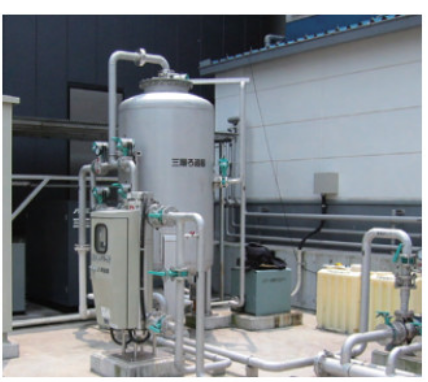

Tohkemy Turbidity And SS Removal Water Treatment Systems
Manufacturer: Tohkemy Corporation
Model: Turbidity And SS Removal

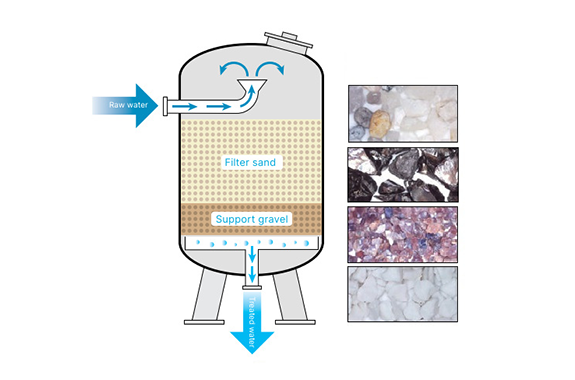

Filter Media
Filter Sand (for rapid filtration)
Anthracite
Garnet
Ceramics
Features of multi-layer filtration compared to sand single-layer filtration
High filtration efficiency due to large void percentage and high turbidity capture volume.
Low head loss relative to the amount of turbidity captured, enable a long filtration duration.
High filtration velocity and small filtration area.
High water recovery rate due to low ratio of backwash water to filtered water volume.
Product Specifications
