Tohkemy Vertical Belt Drive Small To Large NTB Agitator And Tank

Manufacturer: Tohkemy Corporation
Model: Vertical Belt Drive Small To Large NTB

Features

Available on a wide range of capacities from small to large (power: 0.1 to 22kW)
Smooth and low vibration with V-belt drive
Simple structure makes maintenance easy

Standard specifications (V-belt reduction)

Model No.	Power		Rated speed (min^-1)		3-blade propeller		Shaft (mm)		Maximum agitating capacity (m³)
Model No.	Output (kW)	Number of poles (P)	50Hz	60Hz	Propeller diameter φD	Number of stages S	Shaft diameter φd	Standard length L	Dilute liquid	Medium viscosity liquid
NTB4-001	0.1	4	300	360	200	1	16	800	0.6	0.2
NTB4-002	0.2				250	1	19	1,000	1.2	0.4
NTB4-004	0.4				300	1	22	1,200	2.4	0.8
NTB4-007	0.75				350	1	25	1,500	4.5	1.5
NTB4-015	1.5				350	2	30	1,650	8.5	3
NTB4-022	2.2				400	2	35	1,800	13	5
NTB4-037	3.7				450	2	40	2,000	20	8
NTB4-055	5.5				500	2	50	2,200	30	12
NTB4-075	7.5				550	2	60	2,500	45	16
NTB4-110	11				600	2	70	2,700	65	22
NTB4-150	15				650	2	80	2,800	90	30
NTB4-185	18.5				700	2	90	3,000	115	38
NTB4-220	22				750	2	100	3,000	140	50

A totally-enclosed fan-cooling outdoor motor made by Hitachi is used as standard.
Possible to assemble the propellers with 2 stages for the models of 1 stage. (The diameter of propellers shall be smaller in case of 2 stages than the standard 1 stage.)
Possible to assemble the shaft seal for 0.2kW or larger models.
Possible to assemble the 6P motor for 0.4kW or larger models. Please contact us for further information.
Racing (no-load operation) is strictly prohibited.
Dilute liquids have a viscosity of about 0.1 Pa · s (100 cP), and medium-viscosity liquids have a viscosity of about 0.1 to 0.5 Pa · s (100 to 500 cP).

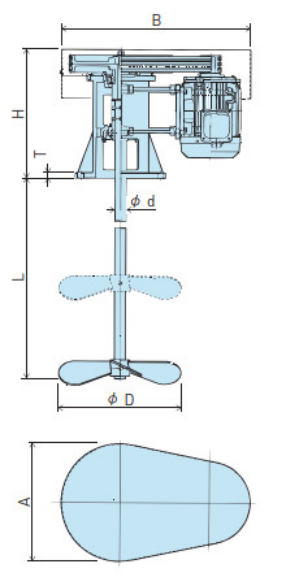

Dimension table

Model No.	Mounting flange dimensions (mm)					Approximate main dimensions(mm)			Approximate equipment weight (kg)
Model No.	Similarly JIS 10K	Outer diameter OD	Pitch Circle Diameter PCD	Number of mounting bolts × hole diameter n×φh	Flange thickness T	H	A	B	Approximate equipment weight (kg)
NTB4-001	100A	210	175	4-φ19	16	276	290	425	18
NTB4-002	100A	210	175	4-φ19	16	276	290	425	20
NTB4-004	125A	250	210	4-φ19	18	353	300	490	30
NTB4-007	125A	250	210	4-φ19	18	353	300	490	38
NTB4-015	150A	280	240	4-φ23	18	396	340	550	55
NTB4-022	200A	330	290	6-φ23	20	472	430	695	115
NTB4-037	200A	330	290	6-φ23	20	472	430	695	130
NTB4-055	250A	400	355	6-φ25	22	620	510	835	200
NTB4-075	250A	400	355	6-φ25	24	700	560	870	230
NTB4-110	300A	445	400	8-φ25	26	830	700	1,050	430
NTB4-150	300A	445	400	8-φ25	26	830	700	1,050	450
NTB4-185	350A	490	455	8-φ25	32	910	760	1,080	520
NTB4-220	350A	490	455	8-φ25	32	910	760	1,080	550

Common specification items

Motor	3-phase 200V 50Hz, 200 / 220V 60Hz 0.1kW ~ : Totally-enclosed fan-cooled
Standard accessories	Simple tools (Excluding large models), instruction manual
Painting	Munsell 2.5G6 / 3 (motor : manufacturer’s standard color)

* Different voltages such as 380/400/440V are also available.
