Tomita Engineering PD Series Two Liquid Automatic Metering Mixing And Dispensing Device
Manufacturer: Tomita engineering Co.,Ltd.
Model: PD Series (Personal Dispenser)
Feature
- Mixing ratio: 100 : 100-14 (fixed ratio depending on pump diameter combination)
- This system precisely measures and mixes two-part resins, a process previously done manually.
- It eliminates resin waste and contributes to the creation of consistent, high-quality products.
- With environmental concerns in mind, we use disposable static mixers for mixing. Since no cleaning solution is used, maintenance is significantly reduced.
- By employing a volumetric metering system, there is no variation in the discharge volume due to changes in liquid viscosity.
Specifications
| Discharge volume range | 0.1-2.0ml (mixed 1 shot) |
| Mixing ratio | 100:100-14 (Volume ratio, depending on the pump diameter combination below) |
| Usable viscosity | 1,000–100,000 mPa·s |
| Weighing method | Posiload method (volume measurement) |
| Metering pump | Choose from φ3.0, 4.0, 5.5, 7.0, and 8.0. |
| Pump drive system | Air cylinder drive |
| Control method | Programmable relay control |
| Air source | 0.4 MPa (dry air) |
| Power supply | AC100V |

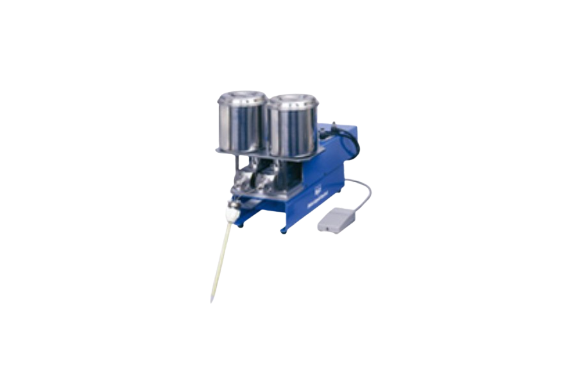

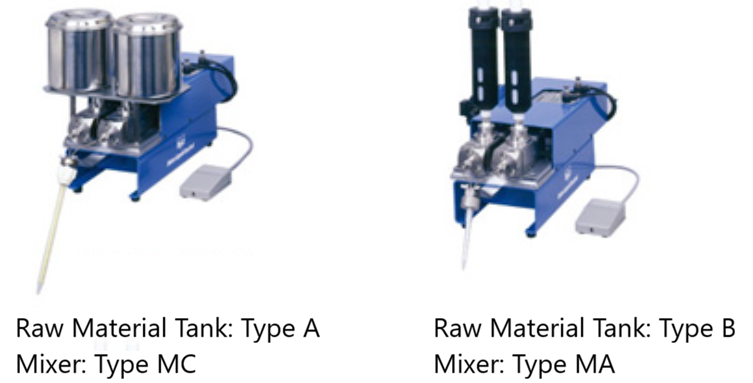

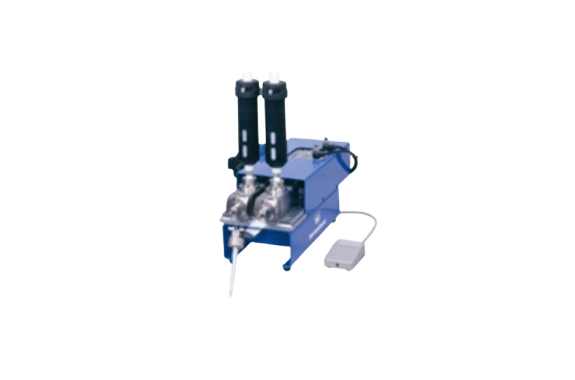

| Weight | Type A: 24kg, Type B: 21kg |
