TOMITA ENGINEERING

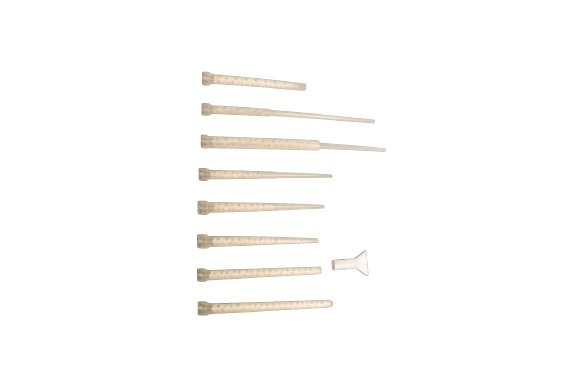

Tomita Engineering Static Mixer Special Purpose Series
Manufacturer: Tomita engineering Co.,Ltd.
Model: Special Purpose Series
Feature
- For Plas-Pak/MIXPAX200･400 (1:1/2:1)
- Primarily used for construction purposes.
- Housing : PP, Element : PP/Polyacetal
Specifications

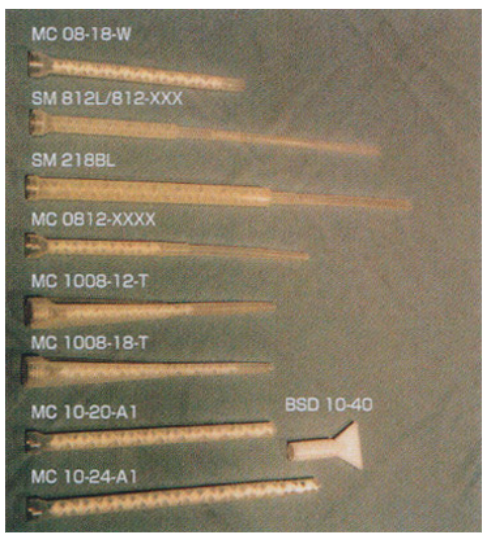

| Part Number | Number of elements | Full length | Discharge port inner diameter | Tip shape |
| SM218-BL | 12.7mm x 18 | 358 | 8.4 | Straight tube (with angled tip) |
| 16X20RP-7/16 | 16mm x 20 | 440 | 11.2 | Straight tube (notched end) |
| 16X20RP-9/16 | 16mm x 20 | 440 | 14.3 | Straight tube (notched end) |
| 262-620-01 | 20mm x 20 | 398 | 10.0 (inner diameter) | 1/2″ NPS external thread tip |
| MC08-18-W | 8.0mm x 18 | 183 | 8.0 | Barb fitting type |
| MC812-0000 | 8.0mm x 12 | 250 | 6.6 | Tapered tube (notched end) |
| MC812-0606 | 8.0mm x 12 + 6.4mm x 6 | 250 | 6.6 | Tapered tube (notched end) |
| MC1008-12-T | 10.0mm x 12 | 218 | 7.7 | Tapered tubing (notched end) for MIXPAC200/400 (1:1/2:1), with integrated nut . |
| MC1008-18-T | 10.0mm x 18 | 218 | 7.7 | Tapered tubing (notched end) for MIXPAC200/400 (1:1/2:1), with integrated nut . |
| MC10-20-A1 | 10.0mm x 20 | 216 | 10 | For attaching ribbon tips |
| MC10-24-A1 | 10.0mm x 24 | 258 | 10.0 | For attaching ribbon tips |
| BSD10-40 (Ribbon Tip) | 69 | 1mm x 40mm square | ||
| BSD10-25 (Ribbon Tip) | 69 | 2mm x 25mm square | ||
