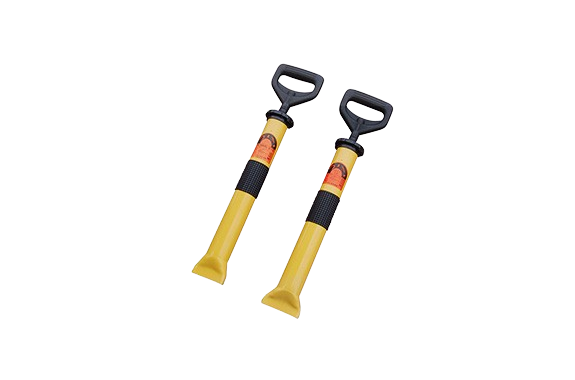

Tomosada Kenki D Type Handy Grout Injector

Manufacturer: Tomosada Kenki Corpotatoin., Ltd.
Model: D Type

Features

1. Beautiful finish with quick and precise operation
2. Nose shape can be changed according to applying spots”

Applications

Filling (injection or press fitting) Mortar to gaps like below;
1. Around window frame (vertical and horizontal)
2. Around door sash (vertical and horizontal)
3.After driving anchor in piping duct
4. Block joint spot
5. ALC joint spot
6.Underneath the floor beam
7. Block joint area between sidewalk and driveway
8. Elevator door frame fitting area
9. Gap of partitioning and etc.

Shape4. Straight Outlet
Standard Length
Straight
5. Straight Outlet
Standard Length
Straight
Outlet FormWidth (mm)1810
Length (mm)8295
Folding AngleStraightStraight
CylinderOuter diameter (Dia.)6161
Tube Length (mm)425425
Overall Length (mm)660660
Weight (kg)0.780.77
Stroke Volume (L)0.90.9
