Manufacturer: Tomosada Kenki Corpotatoin ., Ltd.
Model: GI-25-2

Features

1. Simple structure with sealless mechanism.
With simple structure without valve seal, there is no worries about liquid spill.
2. Outstanding suction power
Max. degree of vacuum is 986hPa、suction is able to lift water column to 9.5m high.
3. Powerful Pumping Performance:
Max. discharge pressure is 1.5MPa.
4. High Ability & Durability
TOMOSADA Pump has a reputation for toughness with durability focused machine design.
5. Equipped with Normal & Reverse Mode.
After pumping in normal rotation, reverse mode helps collect residual liquid.
6. Easy maintenance
Easy to exchange a tube .
7. Wide range applications
Solid, highly concentration slurry/sludge: Possible to compress and transport to a quarter of tube diameter
Liquid containg fibers: Possible to transport a long fiber without widing
Soft stuff: Possible to transport tangerine grains without crushing
Operative with air suck-in liguid: Possbile to operate the liquid sucking in with air
8. Easy cleaning of Pipe Inside.
Cleaning of pipe inside requires only sponges.

Applications

Chemicals
Transfers acids, alkalis, inks, paints, adhesives, emulsions, PAC, polymers, and slurries.
Foods
Handles miso, mash, seaweed, sausage, juice with grains, cream, pickles, soup, and pet food.
Wastewater
Processes livestock waste, fishery wastewater, sludge, activated carbon, and resins.
Construction
Pumps concrete, mortar, clay, bentonite, plaster, ore slurry, and bottom sludge.
Others
Moves fish, pulp chips, waste paper, fiber sludge, and metal slurry.

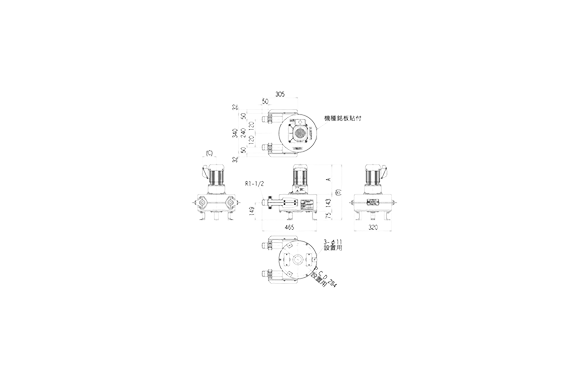

Specification

* Voltages can be converted for the condition in your country
