Features
AC Three Phase Power Supply
2 step pulley-driving
Inverter control
Applications
Pumping / Injection / Spraying – Mortar & Grout
Dewatering – Waste Water
Specification

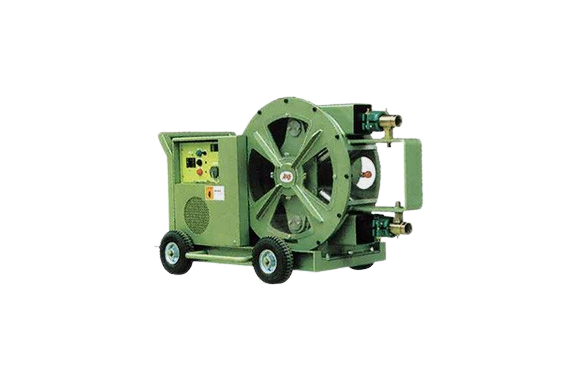

| Model | TS-103MT |
| Power supply | 7.5kw Three phase * |
| Speed control | 2 Step pulley and inverter |
| Discharge volume | 23 – 200L/min |
| Max. output pressure | 2.5Mpa（25kgf/C㎡） |
| Deliverable distance | Horizontally 200m or vertically 50m |
| Pumping tube | Dia.65×L1900 |
| Pumping roller | 3 rollers |
| Dimension | L1600×W710×H1030mm |
| Weight | 450kg |
* Voltages can be converted for the condition in your country
