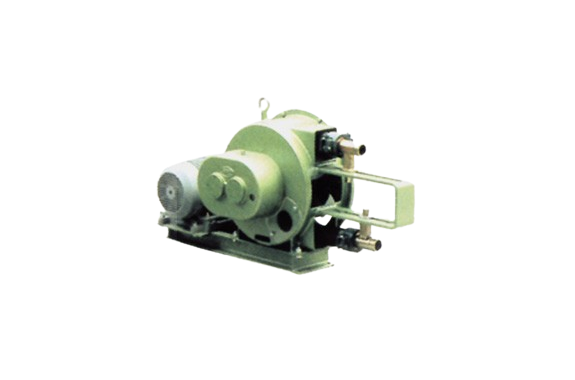

Tomosada Kenki TS-5MTK Peristaltic Tube Pump Without Control Panel

Manufacturer: Tomosada Kenki Corpotatoin ., Ltd.
Model: TS-5MTK

Features

The pump has a simple, sealless design; therefore, it avoids liquid spills. Moreover, it provides strong suction, with a vacuum up to 986 hPa, allowing it to lift water to 9.5 meters. In addition, it delivers high discharge pressure—up to 25 kgf/cm²—ensuring powerful performance. It also includes both normal and reverse modes; as a result, users can easily recover residual liquid after pumping. Furthermore, maintenance is simple since the tube is easy to replace and the pipe can be cleaned with just a sponge. Consequently, the system stays efficient with minimal effort. Besides, the pump is versatile: it handles viscous liquids up to 50,000 cPs, transports dense slurries through narrow tubes, moves fibers without tangling, and carries soft materials like tangerine grains without damage. Even with air mixed in, it remains fully functional. Lastly, a tube breakage detector can be added for extra safety.

Applications

Chemicals
Alkaline solution, acid, sodium hydroxide, soap solution, ink, paint, pigments or dyes, all sorts of pastes, polishing liquid, latex, adhesive bond, alcohol, acetic acid, bicarbonate, PAC, polymer coagulant, hydrated lime, slurry plating liquid, all sorts of emulsion
Dewatering – Waste Water
Livestock excretion, fishery processing waste water, food wastewater sludge, powdered activated carbon and ion exchange resin, and etc.
Building and construction
Fresh concrete, mortar, cement milk, clay, bentonite, plaster slurry, ore slurry, ceramics slurry, construction paint, bottom sludge, and etc.
Others
Pulp chips, waste paper, papermaking sludge, fiber sludge, metal slurry

Specification

ModelTS-5MTK-4TS-5MTK-5
Discharge33L/min.50L/min.
Power supply3.7kw
VoltageThree phase *
Pumping tubeDia.40×L1250Dia.50×L1400

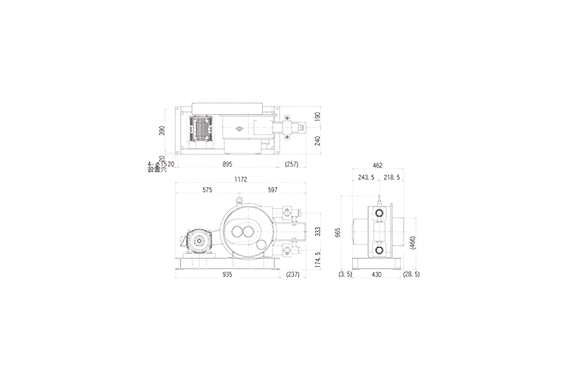

DimensionW463×L1172×H665mm
Weight250kg

* Voltages can be converted for the condition in your countryTomosada Kenki TS-5MTK Peristaltic Tube Pump Without Control Panel
