Japan, TONE, TOOLS & EQUIPMENT

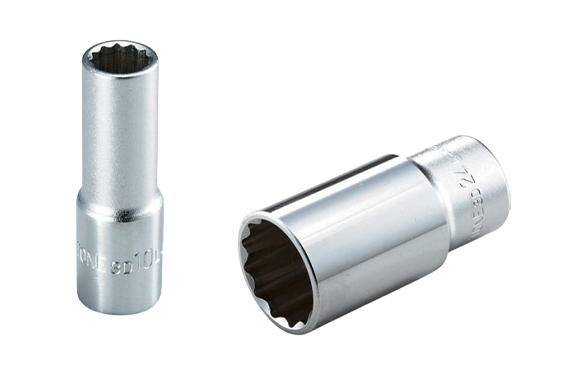

TONE 3D-L Deep Socket
Product: Made in Japan
Manufacturer: TONE
Model: 3D-L (3D-08L; 3D-10L; 3D-12L; 3D-13L; 3D-14L; 3D-15L; 3D-16L; 3D-17L; 3D-18L; 3D-19L; 3D-21L; 3D-22L; 3D-24L)
| Model | Across Flat (mm) | Dimensions (mm) | Packing Quantity | Weight (g) | |||||
|---|---|---|---|---|---|---|---|---|---|
| S | D1 | D2 | L1 | L | d | (Usually) | (Store ornament) | ||
| 3D-08L | 8 | 11.7 | 17 | 6 | 54 | 7 | 10 | 6 | 35 |
| 3D-10L | 10 | 14.7 | 17 | 8 | 54 | 8.5 | 10 | 6 | 50 |
| 3D-12L | 12 | 18 | 17 | 9 | 54 | 10 | 10 | 6 | 60 |
| 3D-13L | 13 | 19 | 17 | 9 | 54 | 10.5 | 10 | 6 | 70 |
| 3D-14L | 14 | 20 | 18 | 10 | 54 | 11 | 10 | 6 | 80 |
| 3D-15L | 15 | 21 | 19 | 10 | 54 | 11 | 10 | 6 | 100 |
| 3D-16L | 16 | 22 | 20 | 11 | 54 | 14 | 10 | 6 | 110 |
| 3D-17L | 17 | 24 | 20 | 11 | 54 | 14.5 | 10 | 6 | 120 |
| 3D-18L | 18 | 25 | 21 | 13 | 54 | 15 | 10 | 6 | 145 |
| 3D-19L | 19 | 26 | 21 | 13 | 54 | 16.2 | 10 | 6 | 160 |
| 3D-21L | 21 | 29 | 23 | 15 | 64 | 18 | 10 | 6 | 175 |
| 3D-22L | 22 | 30 | 24 | 15 | 64 | 18 | 10 | 6 | 195 |
| 3D-24L | 24 | 32 | 26 | 17 | 64 | 20 | 10 | 6 | 200 |
- Kouei is the Official Distributor/Agent of TONE.
- Other items of TONE
- Request the quotation for TONE
