Japan, TONE, TOOLS & EQUIPMENT

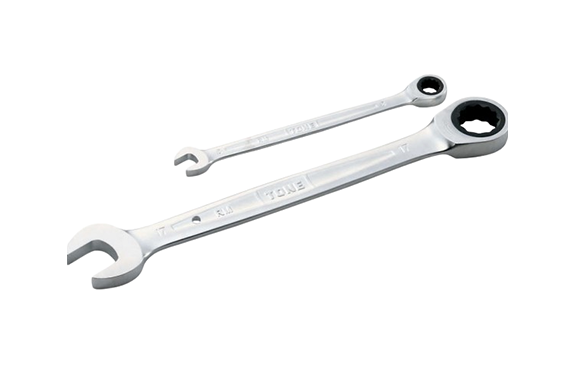

TONE RM Ratchet Ring Wrench, Standard
Import from: Japan
Manufacturer: TONE
Model: RM-07; RM-08; RM-10; RM-11; RM-12; RM-13; RM-14; RM-15; RM-16; RM-17; RM-18; RM-19; RM-21; RM-22; RM-24
Specifications
| Models | Across Flat (mm) | Dimensions (mm) | Packing Quantity (Usually) / (Store Ornament) | Weight (g) |
| RM-07 | 7 | D1: 16.2, D2: 16.4, T1: 4.1, T2: 6.5, L: 140 | 140 / 10 | 29 |
| RM-08 | 8 | D1: 16.2, D2: 16.4, T1: 4.1, T2: 6.5, L: 140 | 140 / 10 | 30 |
| RM-10 | 10 | D1: 20.5, D2: 20.0, T1: 4.8, T2: 7.3, L: 158 | 150 / 10 | 50 |
| RM-11 | 11 | D1: 22.6, D2: 21.4, T1: 5.1, T2: 7.7, L: 165 | 160 / 10 | 57 |
| RM-12 | 12 | D1: 24.6, D2: 22.6, T1: 5.3, T2: 8.2, L: 171 | 165 / 10 | 61 |
| RM-13 | 13 | D1: 26.4, D2: 24.5, T1: 5.9, T2: 8.3, L: 178 | 170 / 10 | 63 |
| RM-14 | 14 | D1: 28.8, D2: 27.0, T1: 6.3, T2: 9.0, L: 190 | 180 / 10 | 70 |
| RM-15 | 15 | D1: 30.8, D2: 28.2, T1: 6.6, T2: 9.4, L: 190 | 190 / 10 | 102 |
| RM-16 | 16 | D1: 33.2, D2: 30.3, T1: 6.9, T2: 9.9, L: 208 | 200 / 10 | 107 |
| RM-17 | 17 | D1: 35.1, D2: 31.6, T1: 7.3, T2: 10.3, L: 225 | 210 / 10 | 110 |
| RM-18 | 18 | D1: 37.2, D2: 32.3, T1: 7.8, T2: 10.7, L: 236 | 220 / 10 | 115 |
| RM-19 | 19 | D1: 39.3, D2: 33.7, T1: 7.8, T2: 10.7, L: 247 | 230 / 10 | 125 |
| RM-21 | 21 | D1: 46.0, D2: 41.0, T1: 8.2, T2: 13.0, L: 288 | 240 / 10 | 150 |
| RM-22 | 22 | D1: 46.2, D2: 40.1, T1: 8.8, T2: 13.0, L: 300 | 250 / 10 | 160 |
| RM-24 | 24 | D1: 51.5, D2: 46.5, T1: 9.8, T2: 14.5, L: 320 | 260 / 10 | 475 |
● With safety rope attaching hole (only RM-14 and larger)
