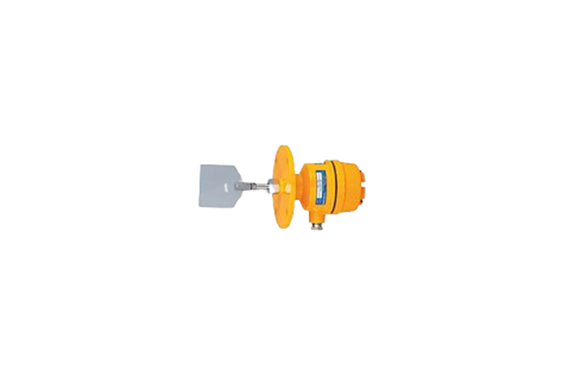

The Paddle-Type Level Switch is highly versatile, capable of measuring the levels of nearly all powders and particles, ensuring broad applicability. Additionally, with a wide range of available options, it can adapt to various operating environments, offering flexibility across different settings. Moreover, the design is simple and easy to handle by anyone, eliminating the need for adjustments. Due to its straightforward mechanical structure, the operation principle is intuitive and easy to grasp, making it a reliable choice for numerous industrial applications.
Furthermore, this product is the most commonly used type in various applications, further enhancing its reputation. It offers remarkable versatility, supporting the upper, middle, and lower limits, which makes it ideal for tank-side installation. As a result, this flexibility enables the switch to function seamlessly across a wide range of environments and applications. Consequently, it ensures effective utilization in various settings, making it an optimal choice for diverse industrial needs.
Specifications
| Model Specifications | |
| Power Supply | AC100/110V 50/60Hz, DPL Type / DC24V ±10%, AC200/220V 50/60Hz, Other electric models available |
| Power Consumption | 2.5W |
| Connection Type | Flange type JIS 5K65A (Aluminum) |
| Contact Output | 1C contact, DPL type AC250V 5A (resistive load), PRL-Z type AC250V 0.1A (resistive load) |
| Output Torque | Approx. 10.0N·cm |
| Slip Ring | Approx. 30.0N·cm |
| Rotation Count | PRL-1.RP, PRL-2R.PM |
| Material | Body Case – Flange, Shaft, Housing – SUS-304, Seal – Nitrile Rubber |
| Fan Size | Standard size: W-1 (80 x 80mm), Other sizes available: 500 type, 500N type, S-1 (30 x 60mm) |
| Operating Temperature | Tank inside Max 70°C, Tank outside Max 65°C |
| Operating Pressure | Tank 0 to 196kPa |
| Paint Color | Munsell 5Y7.5/14 |
| Protection Level | IP65 |
