The Paddle-Type Level Switch is highly versatile, capable of measuring the levels of nearly all powders and particles, ensuring broad applicability. Additionally, with a wide range of available options, it can adapt to various operating environments, offering flexibility across different settings. Moreover, the design is simple and easy to handle by anyone, eliminating the need for adjustments. Due to its straightforward mechanical structure, the operation principle is intuitive and easy to grasp, making it a reliable choice for numerous industrial applications.

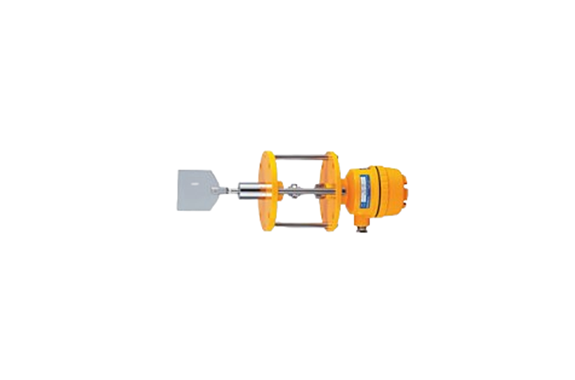

The PRL-100F model allows for clear visual confirmation of the shaft’s rotation from outside the tank, offering ease of monitoring during operation. Designed for maximum flexibility, it supports lengths of up to 2000mm/m, making it ideal for various installation requirements. Furthermore, the cup ring section is constructed using high-quality acrylic pipes, ensuring durability and suitability for outdoor applications. With these versatile features, the PRL-100F model provides a robust solution for industrial settings requiring precise length control and reliable outdoor performance.
Specifications
| Model Specifications | |
| Power Supply | AC100/110V 50/60Hz, DPL Type / DC24V ±10%, AC200/220V 50/60Hz, Other electric models available |
| Power Consumption | 2.5W |
| Connection Type | Flange type JIS 5K65A (Aluminum) |
| Contact Output | 1C contact, DPL type AC250V 5A (resistive load), PRL-Z type AC250V 0.1A (resistive load) |
| Output Torque | Approx. 10.0N·cm |
| Slip Ring | Approx. 30.0N·cm |
| Rotation Count | PRL-1.RP, PRL-2R.PM |
| Material | Body Case – Flange, Shaft, Housing – SUS-304, Seal – Nitrile Rubber |
| Fan Size | Standard size: W-1 (80 x 80mm), Other sizes available: 500 type, 500N type, S-1 (30 x 60mm) |
| Operating Temperature | Tank inside Max 70°C, Tank outside Max 65°C |
| Operating Pressure | Tank 0 to 196kPa |
| Paint Color | Munsell 5Y7.5/14 |
| Protection Level | IP65 |
