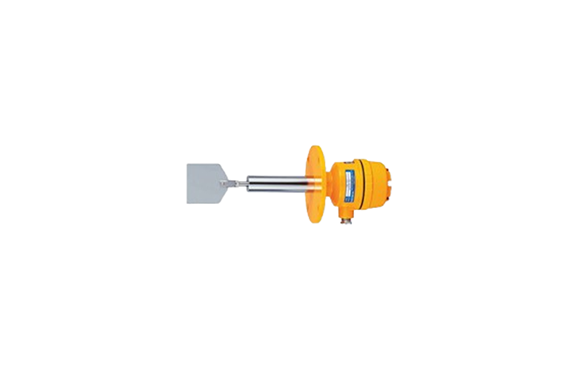

The Paddle-Type Level Switch is highly versatile, capable of measuring the levels of nearly all powders and particles, ensuring broad applicability. Additionally, with a wide range of available options, it can adapt to various operating environments, offering flexibility across different settings. Moreover, the design is simple and easy to handle by anyone, eliminating the need for adjustments. Due to its straightforward mechanical structure, the operation principle is intuitive and easy to grasp, making it a reliable choice for numerous industrial applications.
This product comes in standard sizes of 250mm, 300mm, 600mm, and 1000mm, offering flexibility for various applications. Additionally, custom sizes can be manufactured in 50mm increments to meet specific project requirements. The maximum size available for the standard configuration is 2000mm/m. For angled installations or special requirements, sizes can also be manufactured in 500mm increments, ensuring that you receive the precise solution you need for optimal performance.
Specifications
| Model Specifications | |
| Power Supply | AC100/110V 50/60Hz, DPL Type / DC24V ±10%, AC200/220V 50/60Hz, Other electric models available |
| Power Consumption | 2.5W |
| Connection Type | Flange type JIS 5K65A (Aluminum) |
| Contact Output | 1C contact, DPL type AC250V 5A (resistive load), PRL-Z type AC250V 0.1A (resistive load) |
| Output Torque | Approx. 10.0N·cm |
| Slip Ring | Approx. 30.0N·cm |
| Rotation Count | PRL-1.RP, PRL-2R.PM |
| Material | Body Case – Flange, Shaft, Housing – SUS-304, Seal – Nitrile Rubber |
| Fan Size | Standard size: W-1 (80 x 80mm), Other sizes available: 500 type, 500N type, S-1 (30 x 60mm) |
| Operating Temperature | Tank inside Max 70°C, Tank outside Max 65°C |
| Operating Pressure | Tank 0 to 196kPa |
| Paint Color | Munsell 5Y7.5/14 |
| Protection Level | IP65 |
