The Paddle-Type Level Switch is highly versatile, capable of measuring the levels of nearly all powders and particles, ensuring broad applicability. Additionally, with a wide range of available options, it can adapt to various operating environments, offering flexibility across different settings. Moreover, the design is simple and easy to handle by anyone, eliminating the need for adjustments. Due to its straightforward mechanical structure, the operation principle is intuitive and easy to grasp, making it a reliable choice for numerous industrial applications.

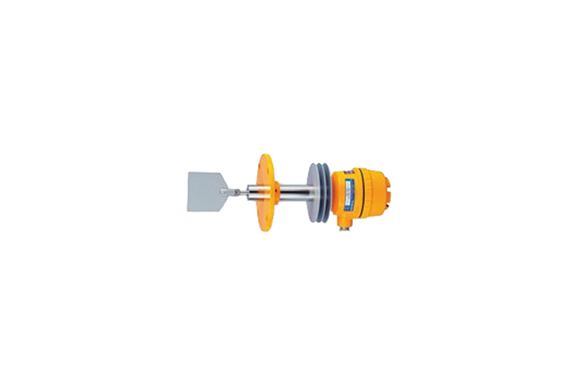

The PRL-200 series is designed for diverse applications, offering a range of temperatures suited to different environments. The PRL-200 model can handle a maximum temperature of 200°C inside the tank, while the PRL-200S variant can withstand temperatures between 250°C and 400°C inside the tank. For external use, the maximum temperature is 55°C. The standard PRL-200 model has a length of 150m/m, but if longer lengths are required, the PRL-201 model provides an ideal solution. This flexibility ensures optimal performance in various temperature conditions and application requirements, delivering the durability and precision you need for your operations.
Specifications
| Model Specifications | |
| Power Supply | AC100/110V 50/60Hz, DPL Type / DC24V ±10%, AC200/220V 50/60Hz, Other electric models available |
| Power Consumption | 2.5W |
| Connection Type | Flange type JIS 5K65A (Aluminum) |
| Contact Output | 1C contact, DPL type AC250V 5A (resistive load), PRL-Z type AC250V 0.1A (resistive load) |
| Output Torque | Approx. 10.0N·cm |
| Slip Ring | Approx. 30.0N·cm |
| Rotation Count | PRL-1.RP, PRL-2R.PM |
| Material | Body Case – Flange, Shaft, Housing – SUS-304, Seal – Nitrile Rubber |
| Fan Size | Standard size: W-1 (80 x 80mm), Other sizes available: 500 type, 500N type, S-1 (30 x 60mm) |
| Operating Temperature | Tank inside Max 70°C, Tank outside Max 65°C |
| Operating Pressure | Tank 0 to 196kPa |
| Paint Color | Munsell 5Y7.5/14 |
| Protection Level | IP65 |
