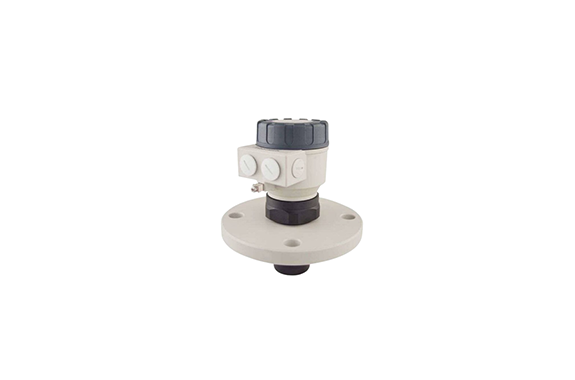

Towa Seiden SGV-380 Ultrasonic Level Indicator 2-Wire Type For Liquid

Manufacturer: Towa Seiden Kogyo Co., Ltd.
Model: SGV-380

Features

This ultrasonic sensor delivers excellent beam control and strong signal transmittance. Therefore, it ensures stable and accurate detection. Moreover, the controller-integrated design simplifies installation and operation. In addition, the ultra-narrow ultrasonic beam angle of just 2.5 degrees per side enables precise targeting. As a result, users can install the sensor even in confined or complex spaces. Furthermore, the availability of both 4-wire and 2-wire DC power options increases system flexibility. Meanwhile, multi-controller configurations support up to 15 channel connections, so large-scale systems remain easy to manage. Consequently, this solution adapts smoothly to diverse industrial environments while maintaining reliable performance.

Specifications

General Specifications
Product NameEchoTREK SG(E)□-300 Series
Sensor MaterialPolypropylene (PP), PVDF, PTFE (SGF/T-390, 380, 370 only)
Housing MaterialAluminum alloy (powder coating), Plastic
Operating Temperature (Sensor)−30°C to +90°C
Ambient Temperature−25°C to +70°C (protect from direct sunlight)
Allowable Pressure0.05–0.3 MPa (0.5–3 bar)
Seal MaterialPP type: EPDM / Others: FPM (Viton)
Waterproof / DustproofSensor: IP68 / Housing: IP67
Power Supply / ConsumptionDC 13.4–36 V / 48–720 mW, reverse polarity & surge protection
Performance Specifications
Accuracy±(0.2% of measured distance + 0.05% of span)
Resolution<2 m: 1 mm
2–5 m: 2 mm
5–10 m: 5 mm
>10 m: 10 mm
Output4–20 mA (3.9–20.5 mA)
Rmax = (Ut − 13.4 V) / 0.02 Ω (SAP-200)
6-wire, IO-Link / Digital
Optional: HART (250 Ω)
Electrical Connection2×M20, 2×1/2″ NPT, cable 0.5–1.5 mm²
Electrical ProtectionClass III
ItemSG(E)-390SG(E)-380SG(E)-370SG(E)-36GSG(E)-34P
Max. Measuring Distance4 m6 m8 m10 m15 m
Min. Measuring Distance0.2 m0.25 m0.35 m0.35 m0.45 m
Ultrasonic Beam Angle
Measuring Frequency80 kHz80 kHz50 kHz60 kHz40 kHz
Process ConnectionG1 1/2″G2″G2″JIS10K80AJIS10K125A
