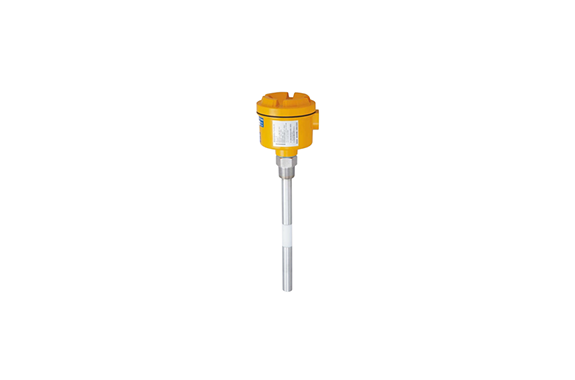

This capacitive level sensor delivers long-term stability because it operates with no moving parts. As a result, it reduces wear and minimizes maintenance needs. In addition, the integrated model includes a detection sensitivity switch, so users can fine-tune performance easily. Moreover, the unique amplifier circuit simplifies maintenance, therefore saving time and operating costs. Furthermore, the product range covers integrated types, separate amplifier types, and explosion-proof types. Consequently, the sensor adapts smoothly to diverse applications and demanding industrial environments.
Specifications
| Item | Sensor | Converter (TSE-RBE) |
|---|---|---|
| Power Supply Voltage | — | AC105 / 210V ±10% (50/60Hz) |
| Electrode Material | SUS304 | — |
| Insulator Material | Polyacetal | — |
| Power Consumption | — | 5.0 VA |
| Output | — | 1C relay AC250V 5A (≤100VA) DC30V 5A (≤100W) |
| Operating Pressure | 980 kPa | — |
| Protection Rating | IP65 (main body case) IP67 (electrode section) | Indoor specification |
| Paint Color | Munsell 10YR7.5/14 | Munsell 10YR7.5/14 |
| Allowable Temperature | Outside tank: −10 to 40°C Inside tank: −10 to 80°C | Outside tank: −10 to 60°C |
| Timer Function | — | ON-delay timer, adjustable 0 to 5 seconds |
