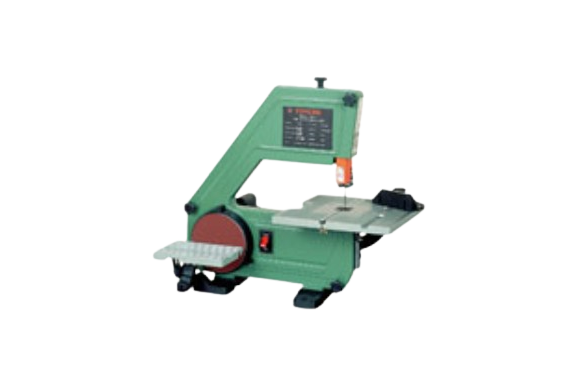

Toyo 1-Speed Band Saw BS-1

Manufacturer: Toyo Associates, Ltd.
Features
The BS-1 band saw is designed with a versatile main body structure that allows it to function both as a band saw and a disc sander, providing enhanced flexibility for various tasks. This capability enables you to cut plywood, balsa wood, and even thin non-ferrous metals with ease. Additionally, it comes equipped with an angle cutting gauge, allowing you to make precise cuts at any angle, further expanding its cutting versatility. As a result, you can tackle a wide range of projects with accuracy and ease.
Ideal for DIY enthusiasts, school education (including art, technology, and arts and crafts), and hobby projects, the BS-1 band saw is a practical tool for both professionals and beginners alike. With its ability to handle various materials and provide consistent performance, it is a must-have tool for creative and educational applications. Consequently, this band saw offers both convenience and reliability, making it perfect for all your cutting and sanding needs.
Specifications
| Work table | W292×D292mm | |
| Maximum cutting depth | 300mm | |
| Maximum cutting capacity | Woodworking Soft wood/95mm | |
| Woodworking Hardwood/30mm | ||
| Aluminum approx. 4mm | ||
| Saw blade circumference | 1,425mm (up to ±6mm) | |
| Table tilt | 0 to 45° | |
| Saw blade width | 6~15mm max | |
| Rotational speed | 50Hz | 680min [revolutions/minute] |
| 60Hz | 820min [revolutions/minute] | |
| Rated voltage | 100V | |
| Rated Frequency | 50/60Hz | |
| Rated power consumption | 150W | |
| own weight | 17.0kg | |
| Body dimensions | W570×D380×H590mm | |
| Disc sander | ||
| diameter | φ150mm | |
| table | W190×D127mm | |
| Table tilt | 0 to 45° |
