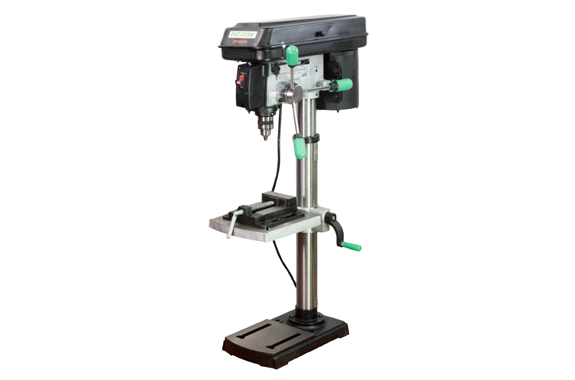

Toyo Benchtop Drill Press DP3050R

Manufacturer: Toyo Associates, Ltd.

Features

This benchtop drill press is the premium model of the DP2000R series. It features a Jacobs taper No. 3 spindle, compatible with a φ16.0 drill bit. The spindle speed adjusts in 12 steps, letting users tailor performance for various materials.

The work table is versatile, raising, lowering, and tilting 45° left and right. This flexibility allows users to handle a range of tasks. The press includes both a drill chuck and vise. The chuck key stores inside the machine, preventing loss.

With a 400W motor output and a weight of 35.5 kg, this drill press provides stable and reliable drilling. It is a vital tool for crafting, woodworking, and precision work, delivering professional-grade results..

Specifications

Work tableW262×D220mm
Chuck distanceMaximum 414mm
Spindle TaperJT-3
Rotational speed[50Hz] min [revolutions/minute] 210/280/320/420/500/540
[60Hz] min [revolutions/minute] 250/340/390/510/600/650
Rated voltage100V
Rated Frequency50/60Hz
Rated power consumption400W
Own weight35.5kg
Installation surface dimensionsW210×D366mm
Body dimensionsW210×D366×H948mm
Packing dimensions810×375×295mm
Grasping diameterUp to 16mm
Mouth width (vice)83mm
Mouth open (vice)83mm
Mouth height (vice)22mm
Installation surface (vice)143×158mm
Dimensions (vice)W143×D180×H49mm
