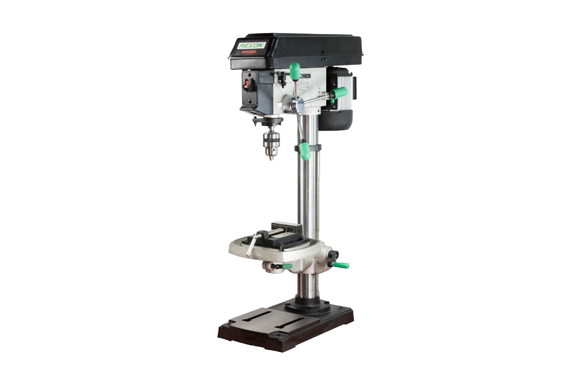

Toyo Benchtop Drill Press DP3300R

Manufacturer: Toyo Associates, Ltd.

Features

This benchtop drill press stands as the premium model of the DP3050R compact drill press, and it delivers enhanced power, capacity, and stability for demanding applications. Because it features a Jacobs taper No. 3 spindle, it supports a drill chuck compatible with drill bits up to 16.0 mm in diameter. Moreover, when you attach an MT2 tapper from another manufacturer, you can perform tapping operations more easily and efficiently.

The spindle speed adjusts in 12 steps, which allows you to match the rotation precisely to different materials. As a result, you achieve cleaner holes and improved tool life. In addition, the work table moves smoothly up and down and tilts 45° left and right, thereby enabling flexible positioning for angled drilling tasks.

Both a drill chuck and a vise come standard, so you can begin working immediately. The chuck key stores neatly inside the drill press, which helps prevent loss and keeps your workspace organized. With a powerful 600W motor and a solid 59 kg body, the machine delivers stable, vibration-resistant drilling performance. Consequently, this premium drill press offers precision, versatility, and reliability, making it an essential tool for serious crafting and workshop projects

Specifications

Work tableW274×D274mm
*1 Chuck distanceMaximum 414mm
Spindle TaperMT2×JT-3
Spindle Travel80mm
Rotational speed[50Hz] min-1 [revolutions/minute]
210/280/320/420/500/540
830/1290/1350/1580/2180/2580
[60Hz] min-1 [revolutions/minute]
250/340/390/510/600/650
990/1550/1620/1900/2620/3100
Rated voltage100V
Rated Frequency50/60Hz
Rated power consumption600W
own weight59kg
Installation surface dimensionsW274×D463mm
Body dimensionsW274×D463×H1000mm
Packing dimensions810×530×483mm
Product specifications (drill chuck)
Grasping diameterUp to 16mm
Product specifications (vice)
mouth width100mm
mouth open93mm
Mouth height22mm
Installation surface143×158mm
*2 DimensionsW143×D180×H49mm
