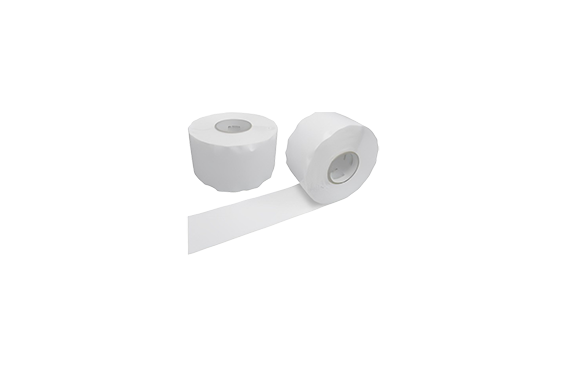

Toyo Densen NYT Flame Retardant Thermal Insulation Adhesive Tape
Manufacturer: TOYO DENSEN CO.,LTD.
Model: NYT
Features
It has strong peel strength, can withstand the shrinkage of insulation material, and prevents copper pipes from becoming exposed.
Specifications
Flammability: V-0 UL94 Standard
Peel Strength: ≥1.0 N/mm
Surface: Polyester Film
Adhesive Material: Special Elastomer
| Product Code | Item Code | Size (mm × m) | Thickness (mm) | Color | Quantity |
| 49101 | NYT-75×10 (White) | 75 × 10 | 1 | White | 6 |
Information
1. Application
This specification defines the product specifications for Taoyang Electric Wire NYT flame-retardant insulation adhesion tape.
2. Product Specifications
| Product Code | Item Code | Color | Thickness (mm) | Quantity |
| 70252 | KVT-50×18 | Ivory | 0.18 | 100 |
| 70253 | KVT-50×18 | White | 0.18 | 100 |
| 70255 | KVT-50×18 | Light Beige | 0.18 | 100 |
| 70259 | KVT-75×18 | Ivory | 0.18 | 80 (4 rolls × 20) |
| Product Code | Item Code | Thickness (mm) | Color | Quantity |
| 49101 | NYT-75×10 | 1 | White | 6 |
3. Shape and Material

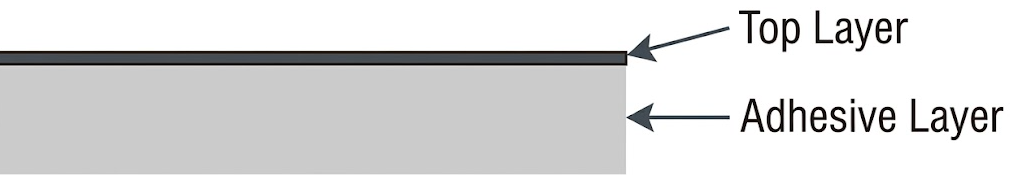

3-1 Structure
Single-sided embossing processing
3-2 Material
| Component | Material |
| Entire Body | PVC |
| Component | Material |
|---|---|
| Surface Material | Polyester Film (Color: Clear) |
| Adhesive | Special Elastomer |
3-3 Properties
| Item | Unit | Standard Value | Test Method |
| Tensile Strength | N/mm | ≥14.7 | Conforms to JIS Z 0237 |
| Elongation | % | ≥100 |
Note: Tensile strength and elongation values comply with JIS K 6251 dumbbell No.1 type.
| Item | Unit | Standard Value | Test Method |
| Peel Strength | N/mm | 1.0 or more | UL-94:1996 Vertical Testing |
| Flame Retardancy | – | Complies with V-0 |
4. Handling Precautions
Clean the surface where the tape will be applied, removing any dust or dirt.
Use the tape only when the application surface is completely dry.

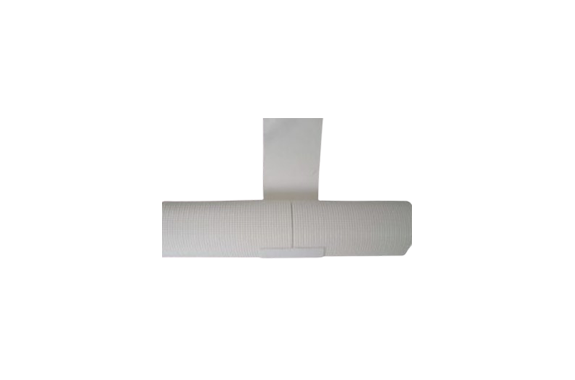

After application, ensure that the adhesion to the insulation material is sufficient.

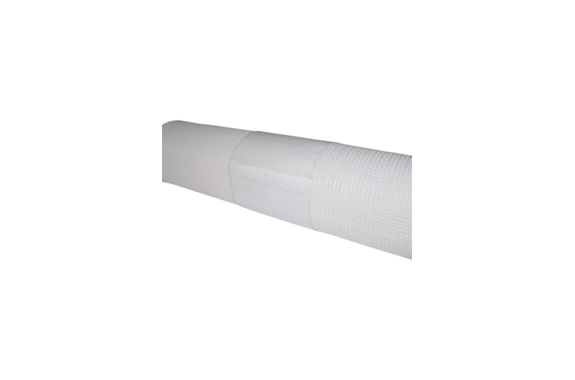

When overlapping the tape by 10 mm or more, press firmly so that the insulation material fits without gaps.
Store the tape in a cool indoor location, avoiding areas with high temperatures, humidity, or direct sunlight.
5. Operating Temperature Range
40°C to 60°C
Note: The content of this specification is subject to change without prior notice.
