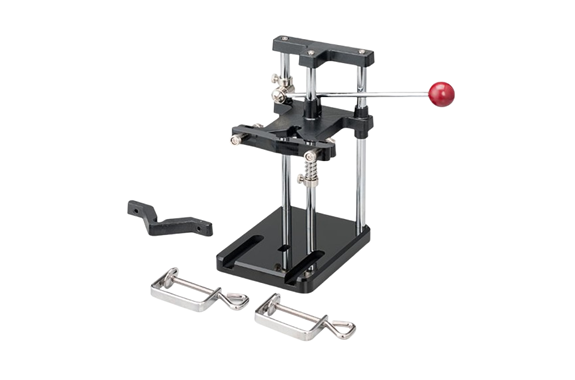

Toyo Drill Press LITE
Manufacturer: Toyo Associates, Ltd.
Features
This assembly-type drill press is compatible with the Mister Meister small power tool series. It comes with a clamp that can be attached to a work desk, making it a convenient attachment for drilling holes in materials. It is primarily an attachment for the small pen-type tool PT-α/α?, and the handpiece grinder HP-100/R/R2 and HP-150.
Specifications
| Stroke *1 | PT-α | 65mm |
| PT-αII | ||
| HP-100R | 63mm | |
| HP-100R2 | ||
| HP-150 | 55mm | |
| Pocket ※2 | PT-α | 40mm |
| PT-αII | ||
| HP-100R | 43mm | |
| HP-100R2 | ||
| HP-150 | 45mm | |
| Base Fixing Thickness | 35mm *3 | |
| Installation area | Width 100 x depth 135 mm | |
| Body dimensions | Width 162 x Depth 135 x Height 195 mm *4 | |
| own weight | *5 842g | |
