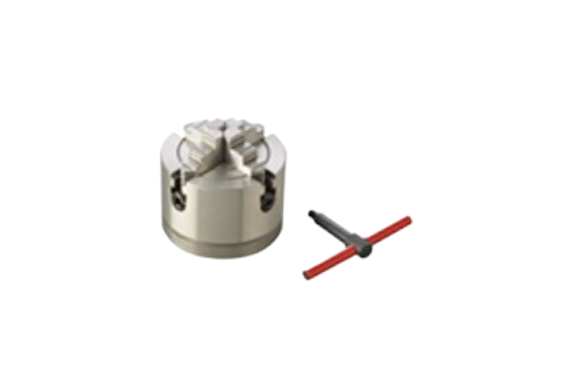

Toyo Four-Jaw Independent Chuck φ100mm

Manufacturer: Toyo Associates, Ltd.

Features

This 100 mm four-jaw independent chuck is designed for the Compact 9 precision bench lathe, and it provides exceptional clamping flexibility for advanced machining tasks. Therefore, it allows you to secure a wide variety of workpiece shapes with greater precision and control. Because each jaw moves independently, you can fine-tune alignment and achieve accurate centering for demanding applications.

Moreover, this independent jaw configuration makes it ideal for gripping square or trapezoidal materials. As a result, you can machine non-round stock confidently while maintaining stable rotation and improved dimensional accuracy. Instead of relying on synchronized jaw movement, you adjust each jaw individually to match the exact geometry of the material.

In addition, the jaws are reversible, which means you can use them in both standard and reverse orientations. Consequently, you expand your clamping range and accommodate larger diameter workpieces with ease. By combining independent adjustment with reversible jaws, this 100 mm chuck enhances versatility, improves machining stability, and delivers reliable performance in precision turning operations.

Specifications

Chuck Diameter100mm
through holes20mm
Grasping diameterφ6 to 70mm when using normal claws
φ40~105mm when reverse claw
PCD66mm (84mm when flange is removed)
