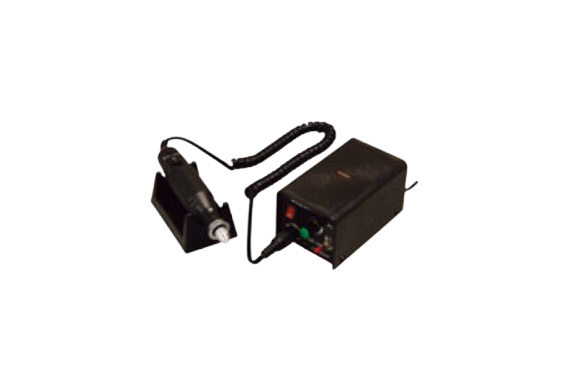

Toyo Handpiece Grinder HP-150

Manufacturer: Toyo Associates, Ltd.

Features

This high-torque and high-spec machine delivers strong performance while maintaining an affordable price, making it suitable even for professional users. It has been newly added to the handpiece grinder series and continues the compact handpiece concept that many users prefer. At the same time, the slightly heavier body improves motor torque while still maintaining comfortable handling and ease of use during operation.

In addition, the standard three-jaw chuck allows quick and easy replacement of cutting tools with shaft diameters ranging from 0.3 mm to 3.2 mm. This feature enables smooth tool changes and supports uninterrupted creative work. The Mr. Meister Handpiece Grinder HP-150 also supports conventional collet use and allows rotation direction changes just like previous models. As a result, the machine offers strong performance, reliable versatility, and flexible operation for a wide range of precision machining and crafting tasks.

Specifications

functionForward and reverse rotation possible
Rotational speedcontinuously variable speed
3,500 to 17,000 min-1
[revolutions per minute]
power supply100V 50/60Hz
weight995g
Body dimensionsW77×D143×H67mm
Connection cable700mm (maximum 1,500mm)
Product specifications (handpiece)
power supplyFrom the control unit
Grasping diameterConforms to collet and three-jaw chuck used
weightApproximately 192g
sizeφ32×L147mm
Continuous Run Test180 minutes (at no load)
