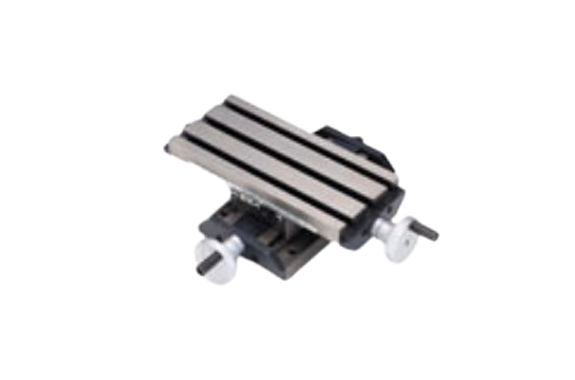

The upper table is easily adjustable with handles on both the left and right, as well as the front and back. This allows for precise positioning of materials and workpieces. You can make smooth, accurate adjustments during milling, giving you greater control over the setup. Its ultra-mini size makes this system highly versatile and ideal for a variety of applications, even in compact spaces. Whether you’re working in a small workshop or need a portable solution, the compact design does not compromise on functionality. With this flexibility, you can improve both efficiency and precision in your machining tasks, enhancing your overall workflow.
Toyo Associates
Toyo Mini XY Stage XYS-200

Manufacturer: Toyo Associates, Ltd.
Features
Specifications
| Spindle | MT-3 |
| Between spindles | 270mm |
| continuously variable speed | |
| Rotational speed | 100 to 2,500 min-1 [revolutions/minute] |
| Travel | Left and right 300mm (left and right travel is 230mm when left and right stoppers are attached) Handle 0.02mm / 75 graduations / rotation 120mm front and rear, 0.02mm handle, 75 graduations, rotation Top and bottom 220mm |
| Fine feed (fine feed) | 0.025mm/scale 1.5mm/rotation |
| Column tilt | ±45° |
| Milling Table | W460×D120mm T-slot: groove 12mm/M10 |
| own weight | 65.0kg |
| power supply | 100V 50/60Hz 500W |
| Body dimensions | W780×D560×H575~730mm |
| Product Specifications (Digital Scale Kit) | |
| – Equipped with a function to change between millimeter and inch display – Equipped with a function to switch between diameter and radius mode – Minimum display: 0.005 mm – Equipped with a function to invert plus/minus display – Equipped with a numerical correction function – Equipped with a function to change font color – Dustproof/waterproof (magnetic scale part) – Power supply: 100V | |
| Product specifications (drill chuck) | |
| Arbor | MT-3 |
| Grasping diameter | φ1 to 13 mm |
| Product specifications (automatic feeder) | |
| power supply | 100V 50/60Hz |
| unit | mm/min |
| Product specifications (quick vise) | |
| Mouth hood | 100mm |
| Product specifications (pull type collet chuck) | |
| taper | MT-3 |
| diameter | φ4/6/8/10/12/14/16mm |
