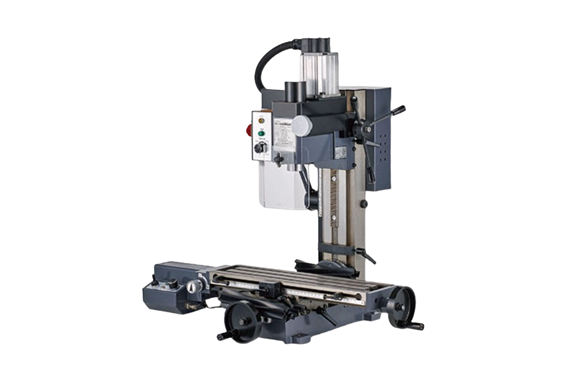

Toyo Precision Benchtop Milling Machine Little Milling 11

Manufacturer: Toyo Associates, Ltd.

Features

The LittleMilling11 precision benchtop milling machine is a compact yet full-scale machine that combines a substantial feel with outstanding performance. It comes standard with an automatic feeder, making it ideal for processing long materials efficiently. Additionally, the machine features a stopper function, allowing you to stop the automatic feed at any position, providing greater control during operations. Equipped with a Morse taper No. 3 spindle, it supports the use of large cutters, enabling you to tackle a variety of demanding milling tasks with precision. The column can be tilted up to 45° left or right, offering flexibility for angled machining. It also includes a fine feeder for smooth, accurate adjustments during machining, and the built-in electrical circuits comply with CE standards, ensuring safety and reliability. Standard features also include a drill chuck and quick vise, making the machine ready for use right out of the box. Furthermore, the attachments are compatible with the No. 60700 LittleMilling9 (excluding the machine stand and benchtop machine stand), allowing you to expand your milling capabilities. As a result, the LittleMilling11 offers exceptional value, combining powerful functionality, flexibility, and precision in a compact, user-friendly design.

Specifications

SpindleMT-3
Between spindles270mm
continuously variable speed
Rotational speed100 to 2,500 min-1 [revolutions/minute]
TravelLeft and right 300mm (left and right travel is 230mm when left and right stoppers are attached)
Handle 0.02mm / 75 graduations / rotation
120mm front and rear, 0.02mm handle, 75 graduations, rotation
Top and bottom 220mm
Fine feed (fine feed)0.025mm/scale
1.5mm/rotation
Column tilt±45°
Milling TableW460×D120mm
T-slot: groove 12mm/M10
own weight65.0kg
power supply100V 50/60Hz 500W
Body dimensionsW780×D560×H575~730mm
Product specifications (drill chuck)
ArborMT-3
Grasping diameterφ1 to 13 mm
Product specifications (automatic feeder)
power supply100V 50/60Hz
unitmm/min
Product specifications (quick vise)
Mouth hood100mm
Product specifications (pull type collet chuck)
taperMT-3
diameterφ4/6/8/10/12/14/16mm
