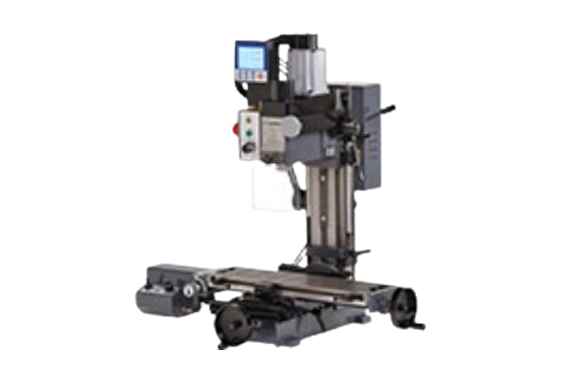

Toyo Precision Benchtop Milling Machine Little Milling 11 (With Digital Scale Kit)

Manufacturer: Toyo Associates, Ltd.

Features

The LittleMilling11 precision benchtop milling machine is a compact, full-scale milling machine that offers a substantial, robust feel while providing exceptional performance. It comes standard with an automatic feeder, which makes it easy to machine long materials efficiently. Additionally, it includes a stopper function, allowing you to stop the automatic feed at any position for greater control during machining. Equipped with a Morse taper No. 3 spindle, the machine supports the use of large cutters, enabling you to handle a wide range of milling tasks with precision. The column tilts up to 45° both left and right, offering flexibility for angled operations. It also features a fine feeder, ensuring smooth, accurate adjustments throughout your machining process. Built-in electrical circuitry complies with CE standards, guaranteeing safety and reliability. Standard accessories include a drill chuck and quick vise, providing everything you need for immediate use. The attachments are compatible with those of the No. 60700 LittleMilling9 (excluding the machine stand and benchtop machine stand), offering increased versatility. Additionally, the LittleMilling11 includes a digital scale kit, enabling you to check machining dimensions directly on the display as you work, improving both accuracy and efficiency. As a result, the LittleMilling11 combines power, flexibility, and precision, making it an ideal choice for a wide range of milling applications.

Specifications

SpindleMT-3
Between spindles270mm
continuously variable speed
Rotational speed100 to 2,500 min-1 [revolutions/minute]
TravelLeft and right 300mm (left and right travel is 230mm when left and right stoppers are attached)
Handle 0.02mm / 75 graduations / rotation
120mm front and rear, 0.02mm handle, 75 graduations, rotation
Top and bottom 220mm
Fine feed (fine feed)0.025mm/scale
1.5mm/rotation
Column tilt±45°
Milling TableW460×D120mm
T-slot: groove 12mm/M10
own weight65.0kg
power supply100V 50/60Hz 500W
Body dimensionsW780×D560×H575~730mm
Product Specifications (Digital Scale Kit)
– Equipped with a function to change between millimeter and inch display
– Equipped with a function to switch between diameter and radius mode
– Minimum display: 0.005 mm
– Equipped with a function to invert plus/minus display
– Equipped with a numerical correction function
– Equipped with a function to change font color
– Dustproof/waterproof (magnetic scale part)
– Power supply: 100V
Product specifications (drill chuck)
ArborMT-3
Grasping diameterφ1 to 13 mm
Product specifications (automatic feeder)
power supply100V 50/60Hz
unitmm/min
Product specifications (quick vise)
Mouth hood100mm
Product specifications (pull type collet chuck)
taperMT-3
diameterφ4/6/8/10/12/14/16mm
