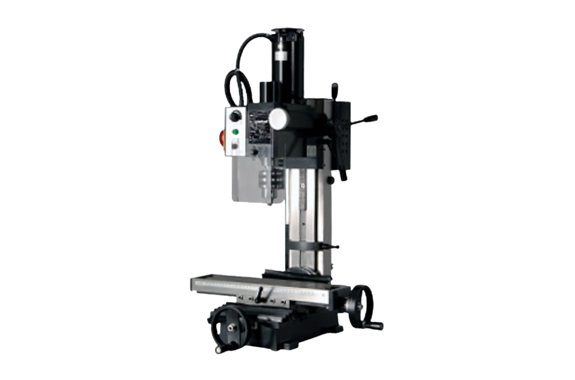

Toyo Precision Benchtop Milling Machine Little Milling 9

Manufacturer: Toyo Associates, Ltd.

Features

The LittleMilling9 precision benchtop milling machine is a robust, full-scale small milling machine that offers excellent stability and performance. Because it uses a Morse taper No. 3 spindle, it can accommodate larger cutters, expanding your machining capabilities for more demanding tasks. Additionally, the column is designed to tilt up to 45° left and right, providing greater flexibility for angled milling operations. Equipped with a fine feed device, it ensures smooth, precise adjustments during machining. The machine also features built-in electrical circuits that comply with CE standards, ensuring safety and reliability. As a bonus, a drill chuck and quick vise are included as standard, making setup and operation even more efficient. Consequently, the LittleMilling9 is an ideal choice for professionals looking for versatility, precision, and reliability in a benchtop milling machine

Specifications

Spindle	MT-3
Between spindles	285mm
High/low switching and variable speed
Rotational speed	High 100 to 2,500 min^-1 [revolutions/minute] Low 100 to 1,100 min^-1 [revolutions/minute]
Travel	Left and right 230mm handle 0.02mm / 75 graduations / rotation 100mm forward/backward, 0.02mm handle, 75 graduations, rotation Top and bottom 185mm
Fine feed (fine feed)	0.025mm/scale 1.5mm/rotation
Column tilt	±45°
Milling Table	W403×D92mm T-slot: groove 12mm/M10
own weight	50.0kg
power supply	100V 50/60Hz 350W
Body dimensions	W520×D500×H585mm *Maximum height is 760mm
Product specifications (drill chuck)
Arbor	MT-3
Grasping diameter	φ1 to 13 mm
Product specifications (quick vise)
Mouth hood	100mm
Product specifications (pull type collet chuck)
taper	MT-3
diameter	φ4/6/8/10/12/14/16mm
