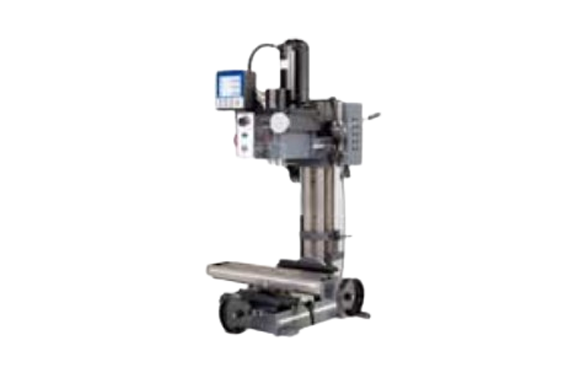

Toyo Precision Benchtop Milling Machine Little Milling 9 (With Digital Scale Kit)

Manufacturer: Toyo Associates, Ltd.

Features

The LittleMilling9 precision benchtop milling machine is a compact, heavy-duty milling machine designed for precision and durability. Featuring a Morse taper No. 3 spindle, it accommodates large cutters, making it ideal for more demanding machining tasks. Additionally, the column tilts up to 45° both left and right, providing flexibility for angled milling operations. Equipped with a fine feed mechanism, it ensures smooth, precise adjustments, while its built-in electrical circuits comply with CE standards for safety and reliability. The machine comes standard with a drill chuck and quick vise, making it easy to secure workpieces for efficient milling. Furthermore, the included digital scale kit allows you to monitor machining dimensions in real-time on the display, improving accuracy and workflow. As a result, the LittleMilling9 provides versatility, precision, and enhanced performance, making it a valuable tool for any workshop.

Specifications

Spindle	MT-3
Between spindles	285mm
High/low switching and variable speed
Rotational speed	High 100 to 2,500 min^-1 [revolutions/minute] Low 100 to 1,000 min^-1 [revolutions/minute]
Travel	Left and right 230mm handle 0.02mm / 75 graduations / rotation 100mm forward/backward, 0.02mm handle, 75 graduations, rotation Top and bottom 185mm
Fine feed (fine feed)	0.025mm/scale 1.5mm/rotation
Column tilt	±45°
Milling Table	W403×D92mm T-slot: groove 12mm/M10
own weight	50.0kg
power supply	100V 50/60Hz 350W
Body dimensions	W520×D500×H585mm *Maximum height is 760mm
Product Specifications (Digital Scale Kit)
– Equipped with a function to change between millimeter and inch display – Equipped with a function to switch between diameter and radius mode – Minimum display: 0.005 mm – Equipped with a function to invert plus/minus display – Equipped with a numerical correction function – Equipped with a function to change font color – Dustproof/waterproof (magnetic scale part) – Power supply: 100V
Product specifications (drill chuck)
Arbor	MT-3
Grasping diameter	φ1 to 13 mm
Product specifications (quick vise)
Mouth hood	100mm
Product specifications (pull type collet chuck)
taper	MT-3
diameter	φ4/6/8/10/12/14/16mm
