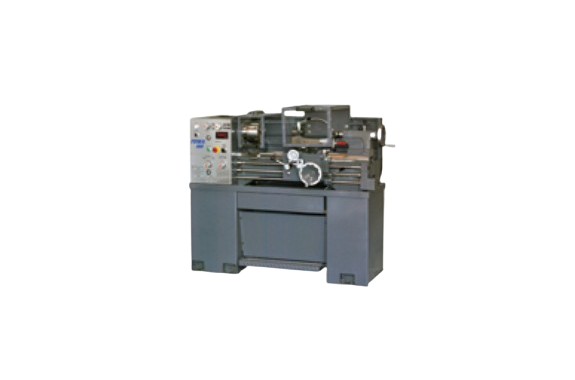

This precision lathe is engineered for high-performance metal processing, and it delivers reliable power and stability in demanding machining environments. Because it is equipped with a high-power motor, it provides strong torque and consistent cutting capability across a wide range of materials. Moreover, its highly rigid and compact design enhances structural stability, reduces vibration, and ensures precise dimensional accuracy during operation. It comes standard with a dedicated machine stand that includes a built-in spindle brake, which improves operational safety and allows quick, controlled stopping when needed. In addition, the integrated coolant system actively manages cutting temperature, thereby reducing heat buildup and extending tool life. As a result, the machine performs efficiently even when processing difficult-to-cut materials. Consequently, this precision lathe combines power, durability, and advanced features to support accurate, stable, and professional-grade metalworking applications.
Specifications
| between hearts | 650mm |
| Bed swing | 360mm |
| Cross slide upward swing | 186mm |
| Rotational speed | continuously variable speed |
| 40 to 365 min-1 [revolutions/minute] | |
| 218 to 2,000 min-1 [revolutions per minute] | |
| Spindle Taper | MT-5 |
| main shaft | D1-4 (Camlock) |
| Spindle rotation direction | Forward/reverse |
| Main shaft through hole | φ40mm |
| Tool rest | 16mm square (maximum) |
| Lead screw | φ22mm/4mm pitch |
| tailstock | MT-3 |
| Quill travel 100mm | |
| Automatic feed | Vertical feed 0.040/0.048/0.056/0.064/ 0.080/0.100/0.120/ 0.140/0.160/0.200/0.240/0.280/ 0.320/0.400 (mm/rev.) |
| Cross slide feed 0.080/0.096/0.112/0.128/ 0.160/0.200/0.240/ 0.280/0.320/0.400/0.480/0.560/ 0.640/0.800 (mm/rev.) | |
| Thread cutting | Metric screws 0.5/0.6/0.7/0.8/1.0/1.2/1.25/ 1.4/1.5/1.6/1.75/2.0/2.5/ 3.0/3.5/4.0/5.0/6.0/7.0/8.0/ 10.0 (mm/pitch) |
| 3/4/6/8/12/15/20/24 inches (ridge/pitch) | |
| own weight | 500kg |
| power supply | Three phase 200V |
| motor | 2HP 1.47kW |
| Body dimensions | W1480×D717×H1550mm |
