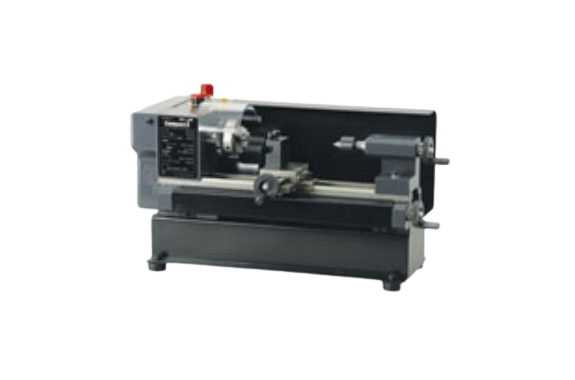

This mini lathe from the Mr. Meister series combines compact design with true professional performance, and it delivers precision machining capability in a small footprint. Because it features the same cast iron ribbed V-bed construction as a standard lathe, it provides exceptional rigidity and stability during operation. Moreover, it includes a fully structured headstock, apron, and tailstock, which together create an authentic and professional machine configuration. Powered by a smooth and efficient V-belt drive system, it operates quietly while maintaining strong and consistent torque. In addition, the long-life motor offers infinitely variable speed control, so you can adjust rotation precisely to match different materials and cutting conditions. With replaceable brushes, it also supports easy maintenance and extended service life. Consequently, this mini lathe allows you to enjoy accurate, smooth, and reliable lathe work at home or even in an office setting, while still achieving high-quality machining results.
Specifications
| between hearts | 150mm |
| Shindaka | 55mm |
| Cross slide upward swing | 54mm |
| Bed swing | 110mm |
| Rotational speed | Variable speed 0 to 3,800 min-1 |
| main shaft | M14 × 1.0 mm |
| Main shaft through hole | φ10.2mm |
| Lead screw | M8×1.0mm |
| Tool rest | Mountable cutting edge height: Maximum 8mm |
| tailstock | Quill travel 20mm |
| own weight | 13.5kg |
| power supply | 100V 50/60Hz 150W |
| Body dimensions | W433×D255×H230mm |
| Product specifications (three-jaw scroll chuck) | |
| diameter | φ50mm |
