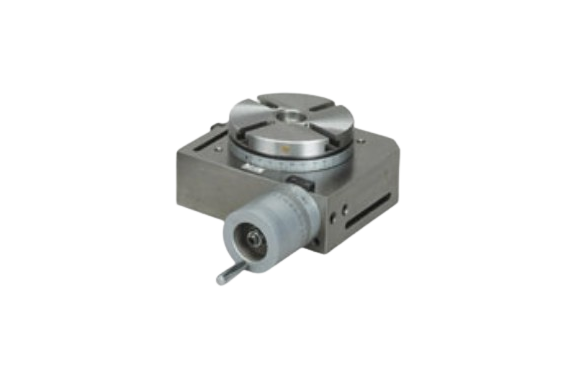

Toyo Rotary Table

Manufacturer: Toyo Associates, Ltd.

Features

The Little Milling 1, Little Milling 9, Little Milling 9X, and Little Milling 11 milling machines enable full 360-degree rotation of the workpiece directly on the milling table, and they significantly expand machining flexibility. Because the rotary function allows continuous circular positioning, you can cut grooves along the circumference with improved accuracy and smoothness. Moreover, when you combine the setup with an index set, you can perform precise segmented machining for gears, slots, and evenly divided patterns. The system also includes an adapter for attaching a three-jaw scroll chuck, which enhances clamping versatility and supports a wider range of workpiece shapes. As a result, you achieve stable holding performance while maintaining rotational precision. When using the Little Milling 1 mini milling machine, you need a long table attachment for vertical rotary table operation due to the machine’s design specifications. Consequently, this rotary capability increases machining range, improves precision, and supports advanced milling applications across the Little Milling series.

Specifications

Disk Diameterφ100mm
center holeMT-2
scale360°
sizeW140×D126×H73mm
Disc H25mm
