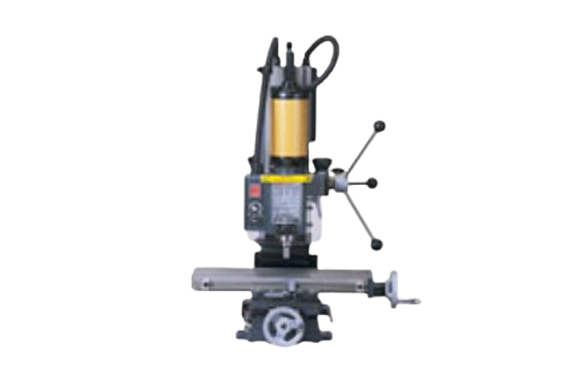

Toyo Small Benchtop Milling Machine FV-10M

Manufacturer: Toyo Associates, Ltd.

Features

This compact benchtop milling machine is the perfect solution for both professional and home use. It combines high performance with an affordable price, making it ideal for working on office desks. The machine features a stepless speed changer for smooth, effortless operation and a support column that tilts up to 45° left or right for added flexibility. It also includes a built-in fine feed (micro-feed device) that enables precise spindle position adjustment in 0.025 mm increments. The package comes with essential accessories like a drill chuck, collet holder, collet set, and mini-vice, so you can immediately start your machining tasks by simply adding a drill and end mill.

Specifications

SpindleMT-3
Between spindles250mm
Rotational speedHigh/low switching and variable speed
High 460 to 2,900 min [revolutions per minute]
Low 300 to 1,500 min [revolutions/minute]
TravelLeft and right 228mm
Front and rear 100mm
Top and bottom 250mm
Column tilt±45°
Milling TableW390×D96mm
T-slot10mm
Fine feed0.025mm
own weight42.0kg
Rated voltage100V
Rated Frequency50/60Hz
Rated power consumption500W
Body dimensionsW500×D500×H870mm
*The height is the maximum value.
Product specifications (drill chuck)
ArborMT-3
Grasping diameterφ1 to 13 mm
Product specifications (mini vise)
Mouth hood63mm
mouth open50mm
Product specifications (collet holder set)
taperMT-3
Coletteφ6/8/10/12/16/20/25mm
