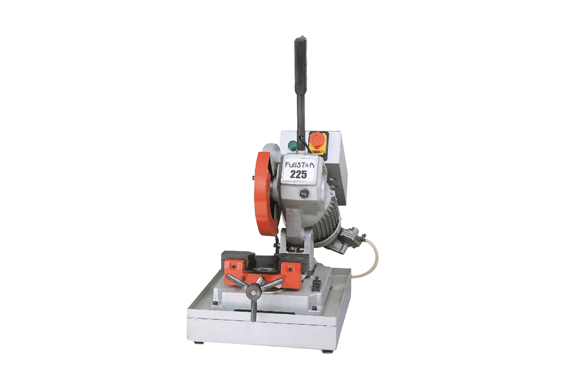

Toyo Zantetsumaru Saw Fullstar 225

Manufacturer: Toyo Associates, Ltd.

Features

The Zantetsu Circular Saw Fullstar 225 cuts stainless steel and other steel materials using a standard household 100V power supply, delivering powerful performance without special electrical requirements. Because it uses a high-output geared motor with low-speed drive, it suppresses frictional heat that typically causes seizure. In addition, the circulating cutting fluid cooling system actively reduces heat buildup, thereby enabling smooth and stable cutting of various steels and non-ferrous metals. As a result, you achieve clean, precise cuts with improved blade life and consistent efficiency.

Moreover, the circular saw head tilts horizontally, which allows accurate angle cutting for more advanced applications. It also includes a convenient support guide, so you can repeatedly cut materials to the same length with high consistency. Despite its powerful capability, the machine maintains a space-saving design that fits comfortably in compact workshops. Consequently, the Zantetsu Circular Saw Fullstar 225 combines efficiency, precision, and flexibility, giving you the freedom to cut metal exactly as you need.

Specifications

ViseMouth opening 82 mm
Height 38 mm
Circular saw blade dimensions
diameter225 mm
Inner diameter32 mm
Thickness2 mm
Number of mountainsHSS 220 teeth / Titanium 200 teeth
Number of threads per inchHSS 8 teeth / Titanium 7.2 teeth
pitchHSS 3.2P / Titanium 3.5P
Pinhole center distancePCD=45mm
Pinhole Diameter9mm
rotation speed52min-1 [revolutions/minute]
Powerful geared motor
Rated voltage100V
Rated Frequency50/60Hz
Rated power consumption850W
output750W
Body weight60kg
Body dimensions*W380×D640×H880mm
Base dimensionsW380×D410mm
