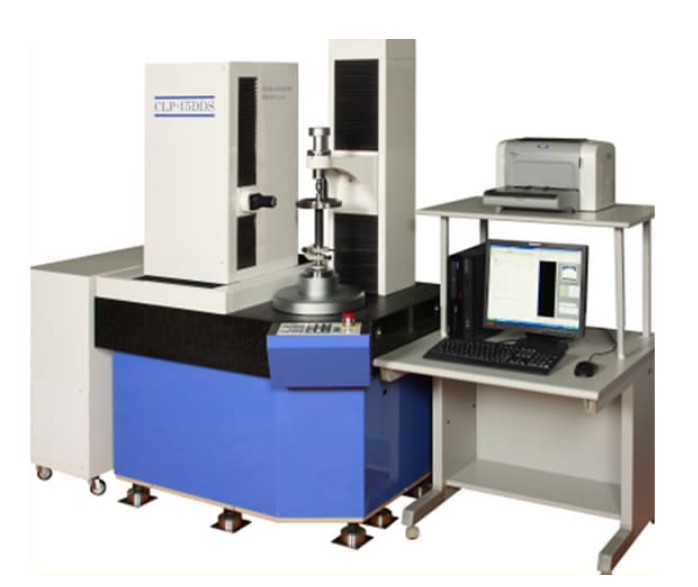

TPR Osaka Seimitsu Kikai DDS Series Gear Measuring Machine
Manufacturer: TPR Osaka Seimitsu Kikai Co., Ltd.
Model : DDS series
Features
- Resistant to environmental changes, enabling more stable measurements
- Servo motors enable high speed operation
- 3D probe (optional) provides multiple functions including bevel gear, hypoid gear, and geometric deviation measurement
| Model | CLP-35DDSF | CLP-45DDSF | CLP-85DDSF |
|---|---|---|---|
| Features | A flagship model that aims for stability, speed, and functionality | A model with an extended measurement stroke of the CLP-35DDSF | Large direct drive machine specialized for large gears |
| Module (mm) | 0.5-12 (0.1～) | 0.5-12 (0.1～) | 1-25 |
| Maximum outer diameter (mm) | 350 | 450 | 850 |
| Maximum weight (kg) | 300 | 300 | 500 |
| 3D probe compatible | 〇 | 〇 | 〇 |
CLP-35DDSF
■Gear Measurement
| Measurement Module | 0.5–12 mm(Option 0.1 and above) |
| Maximum measurement gear outer diameter | 350 mm |
| Maximum measurement face width length | 400 mm |
| Measurement gear shaft length | 50–500 mm(Option: up to 800mm) |
| Maximum measured gear weight | 300 kg |
| Air pressure used/consumption (3D recommended option) | 0.3～0.8MPa 65L/min |
■External view and layout diagram
CLP-45DDSF
■Gear Measurement
| Measurement Module | 0.5–12 mm(Option 0.1 and above) |
| Maximum measurement gear outer diameter | 450 mm |
| Maximum measurement face width length | 400 mm |
| Measurement gear shaft length | 50–500 mm(Option: up to 800mm) |
| Maximum measured gear weight | 300 kg |
| Air pressure used/consumption (3D recommended option) | 0.3～0.8MPa 65L/min |
■External view and layout diagram
CLP-85DDSF
■Gear Measurement
| Measurement Module | 1.0 to 25 mm |
| Maximum measurement gear outer diameter | 850 mm |
| Maximum measurement face width length | 600 mm |
| Measurement gear shaft length | 60 to 800 mm(Option: up to 1,200mm) |
| Maximum measured gear weight | 500 kg |
| Air pressure used/consumption (3D recommended option) | 0.3～0.8MPa 65L/min |
■External view and layout diagram
Specifications
| Item | CLP-35DDSF | CLP-45DDSF | CLP-85DDSF |
|---|---|---|---|
| Measuring Item | Tooth profile, helix, pitch (single, adjacent and cumulative) and runout for spur and helical gear (Incl. internal gear) | ||
| Standard software | ● Detailed measurement of tooth surface and its output ● Successive measurement of counter shaft gears ● Three-dimensional display of tooth surface ● Output of comparison data before and after heat treatment (Overwriting) ● ISO, JIS, DIN, AGMA and GB classification etc. | ||
| Module | (m0.1 ～ ※) m0.5 ～ 12 ※When special measurement sensors are used | m1 ～ 25 | |
| Number of teeth | 10 ~ 500 | ||
| Gear outer diameter | Maxφ350mm | Maxφ450mm | Maxφ850mm |
| Base diameter | 0 ～ φ300 | 0 ～ φ400 | 0 ～ φ800mm |
| Tooth width | Max400mm | Max600mm | |
| Tangent length for profile measurement | ±120mm | ±200mm | |
| Helix angle (with optional equipment) | 0°~ ±65° ( ±65°~ ±90°) | ||
| Gear shaft length (with optional spec) | 50 ～ 500mm (50 ～ 800mm) | 60 ～ 800mm | |
| Gear weight | Max300kg | Max500kg | |
| Resolution | 0.0001mm | ||
| Power supply | AC 100V ±4% | AC 200V ±4% | |
| Capacitance | 2KVA | 3KVA | |
| Air supply pressure / consumption(recommended option) | 0.3～0.8MPa 65ℓ/min | ||
| Machine weight | 2.0ton | 3.5ton | |
| Dimensions of machine (W x D x H) mm | 995×966×1900 （995×966×2200） | 1251×1059×1899 （1251×1059×2199） | 1875×1399×2160 |
