TPR Osaka Seimitsu Kikai RCLP-210 Large Rack Measuring Machine
Manufacturer: TPR Osaka Seimitsu Kikai Co., Ltd.
Model : RCLP-210
Features
- RCLP-210 makes it possible to measure the tooth profile/tooth trace/pitch of large racks, which could not be measured with the conventional CLP-35/65.
- By adopting a direct drive mechanism and granite, we have achieved high-precision measurement by stabilizing the measurement operation and accuracy.
- Measures the pitch of both tooth surfaces simultaneously, reducing measurement time
RCLP-210
■Gear Measurement
| Measurement items | Spur and helical rack gear tooth profile and tooth lead deviation (error) Various pitch deviations (adjacent, single, cumulative) |
| Measurement Module | 0.5 to 10 mm |
| Maximum number of teeth to be measured | 999 sheets |
| Maximum measuring gear height | 150 mm |
| Maximum measurable tooth width | 150 mm |
| Maximum measuring gear length | 2,100 mm |
| Measured torsion angle | ±65° |
| Maximum measured gear weight | 120 kg |
| Power supply | AC100V±5% (50/60Hz) |

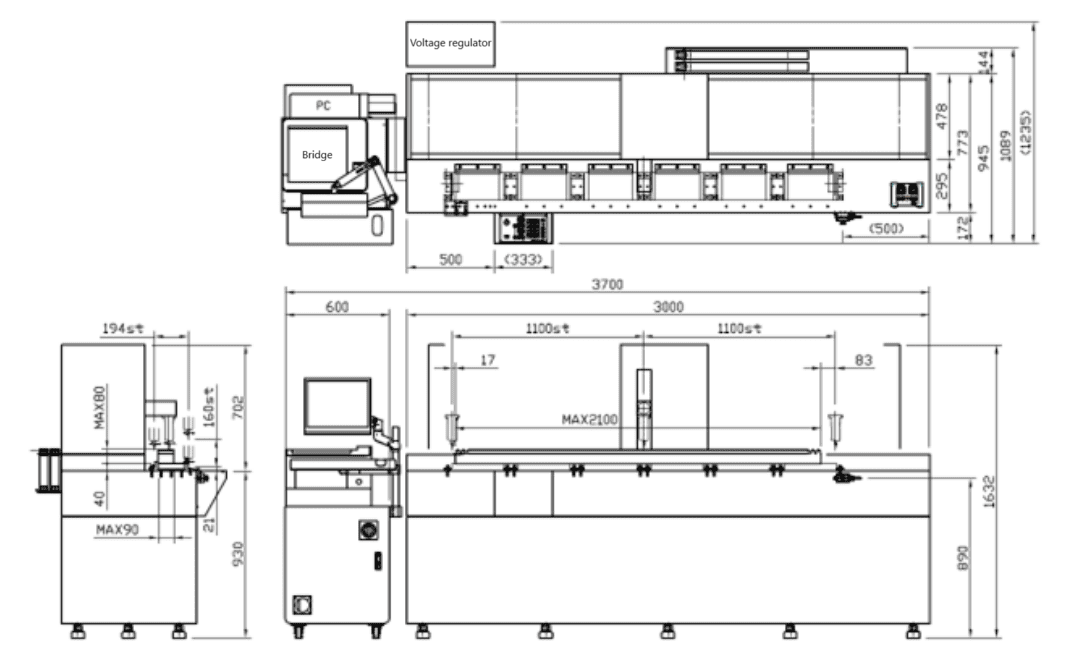

■External view and layout diagram
