SUNCO

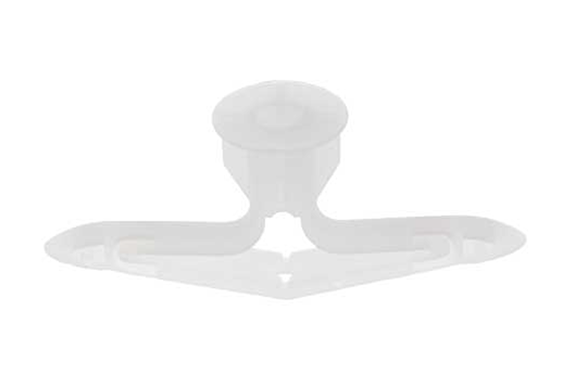

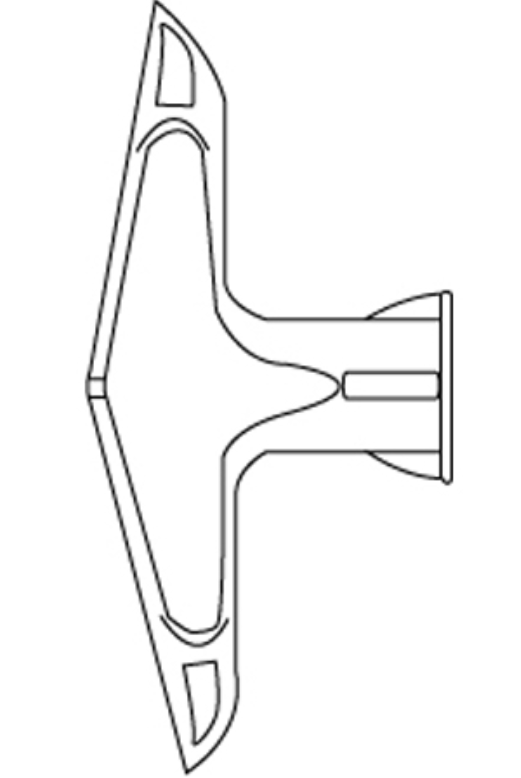

U0-9F01 Phoenix (Slimkun)
Model: U0-9F01
Iron (or standard).
Plain.
| Part No. | Overall Length (Folded) | Head Diameter | Applicable Wall Thickness | Screw Diameter | Screw Length | Pilot Hole Diameter |
|---|---|---|---|---|---|---|
| S-1 | 27.0 | 12.5 | 3 mm or more | 3.5 – 4.0 | 27 mm + mounting material thickness | 6.0 |
| S-2 | 29.0 | 8 mm or more | 29 mm + mounting material thickness | |||
| S-3 | 32.0 | 11 mm or more | 32 mm + mounting material thickness |
