U0-Y020 AAP Inflatable Anchor Set Slim
Model: U0-Y020

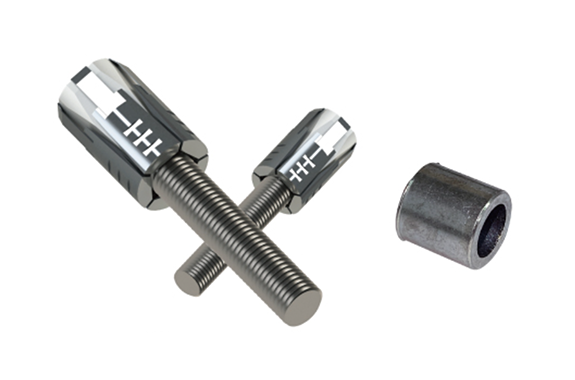

*Representative image only
Iron (or standard).
Trivalent zinc cr+3 color white.
■ Slim Type
● Test Conditions
Concrete Design Strength: Fc = 21 N/mm²
Bolt Material: SS400
| Product Code | Thread Size | Material | Outer Diameter (mm) | Overall Length (mm) | Drill Diameter (mm) | Hole Depth (mm) | Tensile Load (kN) |
|---|---|---|---|---|---|---|---|
| ZSM10-S | M10 | Zinc Die Cast (ZAS) | 14.6 | 26.0 | 15.0 | 50 | 20.1 |
| 100 | 34.9 | ||||||
| ZSM12-S | M12 | 17.6 | 29.0 | 18.0 | 50 | 26.0 | |
| 120 | 51.8 | ||||||
| ZSM16-S | M16 | 23.6 | 44.0 | 24.0 | 80 | 46.5 | |
| 160 | 72.2 | ||||||
| ZSM20-S | M20 | 27.6 | 50.0 | 28.0 | 100 | 67.3 | |
| 200 | 113.4 |
