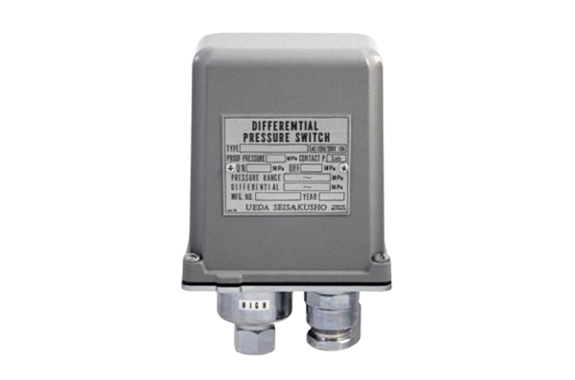

Ueda Seisakusho DPU74W Series Differential Pressure Switch

Manufacturer: Ueda Seisakusho Co., Ltd.
Model : DPU74W series

Features

The DPU74W series is a differential pressure switch with waterproofing.
The switch body is made of aluminum die-casting, making it lightweight and sturdy.
The standard controlled fluid is suitable for air, water, oil (fluid temperature -10 to 90°C), etc.
Stainless steel bellows are also available as an option for corrosive fluids, hot water, etc.
Depending on the type of fluid, careful consideration is required, so please consult our sales staff for details.

Item	Specification
Product Name	Outdoor waterproof differential pressure switch
Size	W.96 x D.73 x H.151.5 mm
Protection Structure	IP65 (IEC529) equivalent
Durability	Electrical & Mechanical Life: 300,000 times or more
Weight	Approx. 1.1 kg
Pressure Receiving Part	Bellows Type
Material	Phosphor Bronze
Insulation Resistance	100 MΩ or more with DC 500 V megger
Dielectric Strength	AC 2,000 V for 1 minute

Model	Pressure Adjustment Range (Range) MPa	ON-OFF Pressure Differential Range (Diff.) MPa	Pressure Resistance (MPa)
Model	DPU74W-03-RC2-M	0.02 ~ 0.3	Pressure Resistance (MPa)	0.015 +0.00 / -0.01	1.5
DPU74W-06-RC2-M	0.03 ~ 0.6	0.015 +0.00 / -0.01	1.5

(A)	06 = Maximum pressure adjustment range: 0.6 MPa
(B)	No code = Bellows and cap: Phosphor bronze (standard product) S = Bellows and cap: Stainless steel (SUS316)
(C)	M = With microswitch (standard product) DCM = For low-voltage microcurrent applications

Rated Voltage	Resistive Load
AC 125 V	10 A
AC 250 V	10 A
