Venn Co.

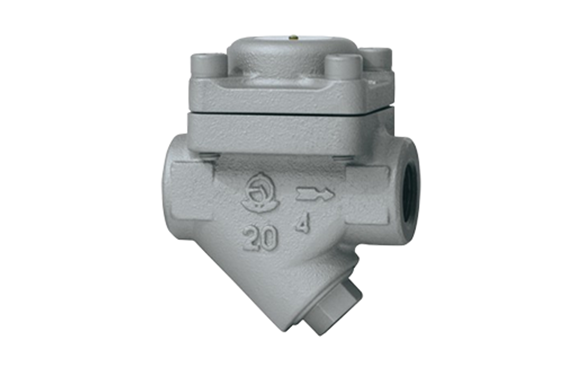

Venn AD-19 type steam trap
Manufacturer: Venn Co., Ltd.
Model: AD-19
Features
- The disc makes of stainless steel.
- In addition, it can mount horizontally or vertically with the outlet facing downward.
- However, mounting with the top lid facing downward does not permit.
- Moreover, it supports a wide pressure range.
- As a result, it can use in many different applications.
Specifications
| Product code | AD19-M |
|---|---|
| Valve type | steam trap |
| format | Disc type |
| Nominal diameter | 15-25 (1/2-1) |
| Applicable fluid | steam |
| Fluid temperature | 220 ℃ or less |
| Applicable pressure | 0.03 to 1.6MPa |
| Maximum continuous emissions | 900L/h |
| End connection | JIS Rc screw |
| Mounting posture | Horizontal / vertical (exit downward) / horizontal mounting free (excluding top lid downward) |
| strainer | 80 mesh |
| Material body | FCD |
| Material Valve seat | SUS |
| Material Top lid | FCD |
| Material disc | SUS |
