Manufacturer: Venn Co., Ltd.

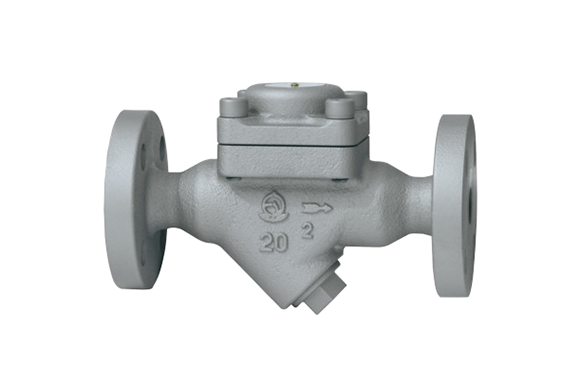

Model: AD-19F
Features
- The disc makes of stainless steel.
- In addition, it can mount horizontally or vertically with the outlet facing downward.
- However, mounting with the top lid facing downward does not allow.
- Moreover, it supports a wide pressure range.
- As a result, it is suitable for many different applications.
Specifications
| Product code | AD19F-M | AD19F-M1 | AD19F-M2 |
|---|
| Valve type | steam trap |
|---|
| format | Disc type |
|---|
| Nominal diameter | 15-25 (1/2-1) | 32–50 (1 1/2–2) |
|---|
| Applicable fluid | steam |
|---|
| Fluid temperature | 220 ℃ or less |
|---|
| Applicable pressure | 0.03 to 1.6MPa | 0.03 to 1.0MPa | 0.03 to 1.6MPa |
|---|
| Maximum continuous emissions | 900L/h | 2240L/h | 2570L/h |
|---|
| End connection | JIS 10K / 16K / 20K (shared) FF flange | JIS 10K FF flange | JIS 20K RF flange |
|---|
| Mounting posture | Horizontal / vertical (exit downward) / horizontal mounting free (excluding top lid downward) |
|---|
| strainer | 80 mesh |
|---|
| Material body | FCD |
|---|
| Material Valve seat | SUS |
|---|
| Material Top lid | FCD |
|---|
| Material disc | SUS |
|---|
