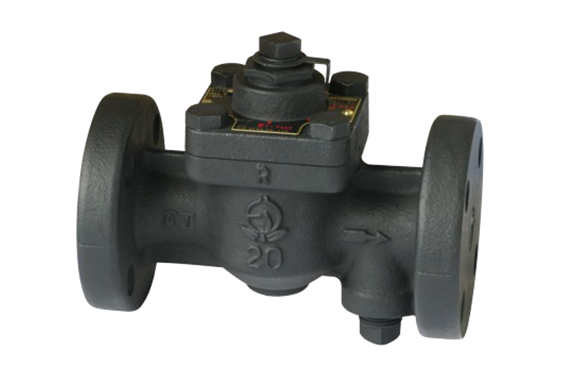

Manufacturer: Venn Co., Ltd.
Model: ADB-20F
Features
- The disc makes of stainless steel.
In addition, it can mount horizontally or vertically with the outlet facing downward.
However, mounting with the top lid facing downward does not permit.
Moreover, the trap, stop, and bypass functions integrate.
As a result, they can easily switch using a single tool.
Specifications
| Product code | ADB20F-G |
|---|
| Valve type | steam trap |
|---|
| format | Disc type |
|---|
| Nominal diameter | 15-25 (1/2-1) |
|---|
| Applicable fluid | steam |
|---|
| Fluid temperature | 184 ℃ or less |
|---|
| Applicable pressure | 0.03 to 1.0MPa |
|---|
| Maximum continuous emissions | 800L / h |
|---|
| End connection | JIS 10K FF flange |
|---|
| Mounting posture | Horizontal / vertical (exit downward) / horizontal mounting free (excluding top lid downward) |
|---|
| Material body | FC |
|---|
| Material Valve seat | SUS |
|---|
| Material cock | CAC |
|---|
| Material cover | FC |
|---|
| Material disc | SUS |
|---|
