Manufacturer: Venn Co., Ltd.

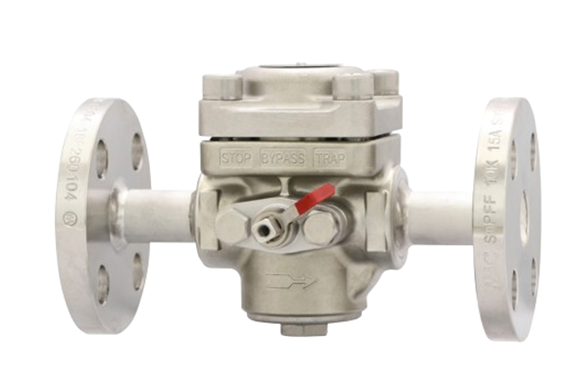

Model: ADB-21F
Features
- Both the main body and key components are made of stainless steel.
- In addition, it can be mounted horizontally or vertically with the outlet facing downward.
- However, mounting with the top lid facing downward is not permitted.
- Moreover, the trap, bypass, and stop functions are integrated.
- As a result, they can be easily switched using a single tool.
Specifications
| Product code | ADB21F-D |
|---|
| Valve type | steam trap |
|---|
| format | Disc type |
|---|
| Nominal diameter | 15-25 (1/2-1) |
|---|
| Applicable fluid | steam |
|---|
| Fluid temperature | 184 ℃ or less |
|---|
| Applicable pressure | 0.03 to 1.0MPa |
|---|
| Maximum continuous emissions | 800L / h |
|---|
| End connection | JIS 10 KFF flange |
|---|
| Mounting posture | Horizontal / vertical (exit downward) / horizontal mounting free (excluding top lid downward) |
|---|
| Material body | SCS |
|---|
| Material Valve seat | SUS |
|---|
| Material disc | SUS |
|---|
| Material ball | SUS |
|---|
