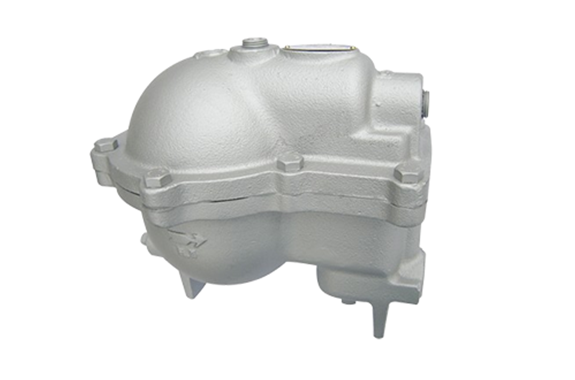

Venn AF-11H Large Trap
Manufacturer: Venn Co., Ltd.
Model: AF-11H
Features
- The structure is simple and durable.
- In addition, the balanced design makes the unit compact while providing a large discharge capacity.
- This applies to the AF-11H type.
- Moreover, it is easy to disassemble, maintain, and inspect.
- Furthermore, the wax-type air release valve helps prevent air obstruction.
- As a result, condensate discharge continuously.
Specifications
| Product Symbol | AF11H-B |
|---|---|
| Types of valves | Steam trap |
| Form | float type |
| Nominal diameter | 15～50（1/2～2） |
| Applicable fluids | Steam |
| Fluid temperature | Below 160°C |
| Application pressure | Less than 0.5MPa |
| Maximum continuous discharge | 9800L/h |
| End connection | JIS Rc Screw |
| Mounting Position | Upright mounting on horizontal piping |
| Material: Body | FC |
| Material: Valve body | SUS |
| Material: Valve seat | SUS |
| Material: Float Case | SUS |
