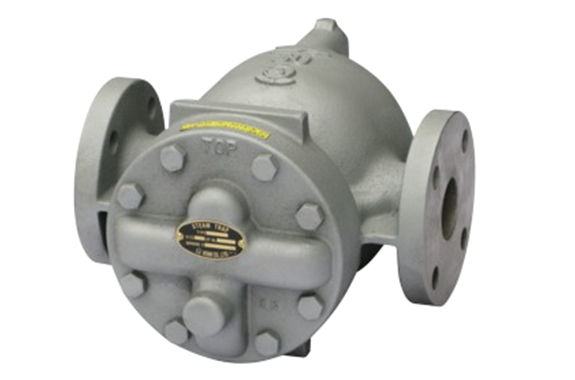

Venn AF-15H type steam trap
Manufacturer: Venn Co., Ltd.
Model: AF-15H
Features
- By adopting a thermo-type air vent valve, warm-up time is shortened and air-related problems prevented.
In addition, it supports a wide pressure range and can use in many applications.
Moreover, it operates stably regardless of the amount of drainage.
Furthermore, by changing the cover position, it can also use for vertical piping from top to bottom.
Specifications
| Product code | AF15H -GL | AF15H -ML | AF15H -GH | AF15H -MH |
|---|---|---|---|---|
| Valve type | steam trap | |||
| format | Float type | |||
| Nominal diameter | 20-50 (3/4-2) | |||
| Applicable fluid | steam | |||
| Fluid temperature | 180 ℃ or less | |||
| Applicable pressure | 0.4MPa or less | 0.9MPa or less | ||
| Maximum continuous emissions | 5000L / h | 4310L / h | ||
| End connection | JIS 10K FF flange | |||
| Mounting posture | Horizontal / rearranged vertically (top to bottom) | |||
| Material body | FC | FCD | FC | FCD |
| Material Main part valve body | SUS | |||
| Material Main part Valve seat | SUS | |||
| Material main part float | SUS | |||
